Key Selection Information
| Selection Parameter | Confirmed Information |
|---|---|
| Function | Integrated thermoelectric cooler driver |
| TEC current | Up to ±1 A class |
| Power stage | Integrated H-bridge MOSFETs |
| Supply range | 2.7 V to 5.5 V |
| Reference | 2.5 V |
| Package | 25-ball WLCSP |
| Junction specification range | -40°C to +125°C |
| Ambient operating range | -40°C to +85°C |
Product Overview

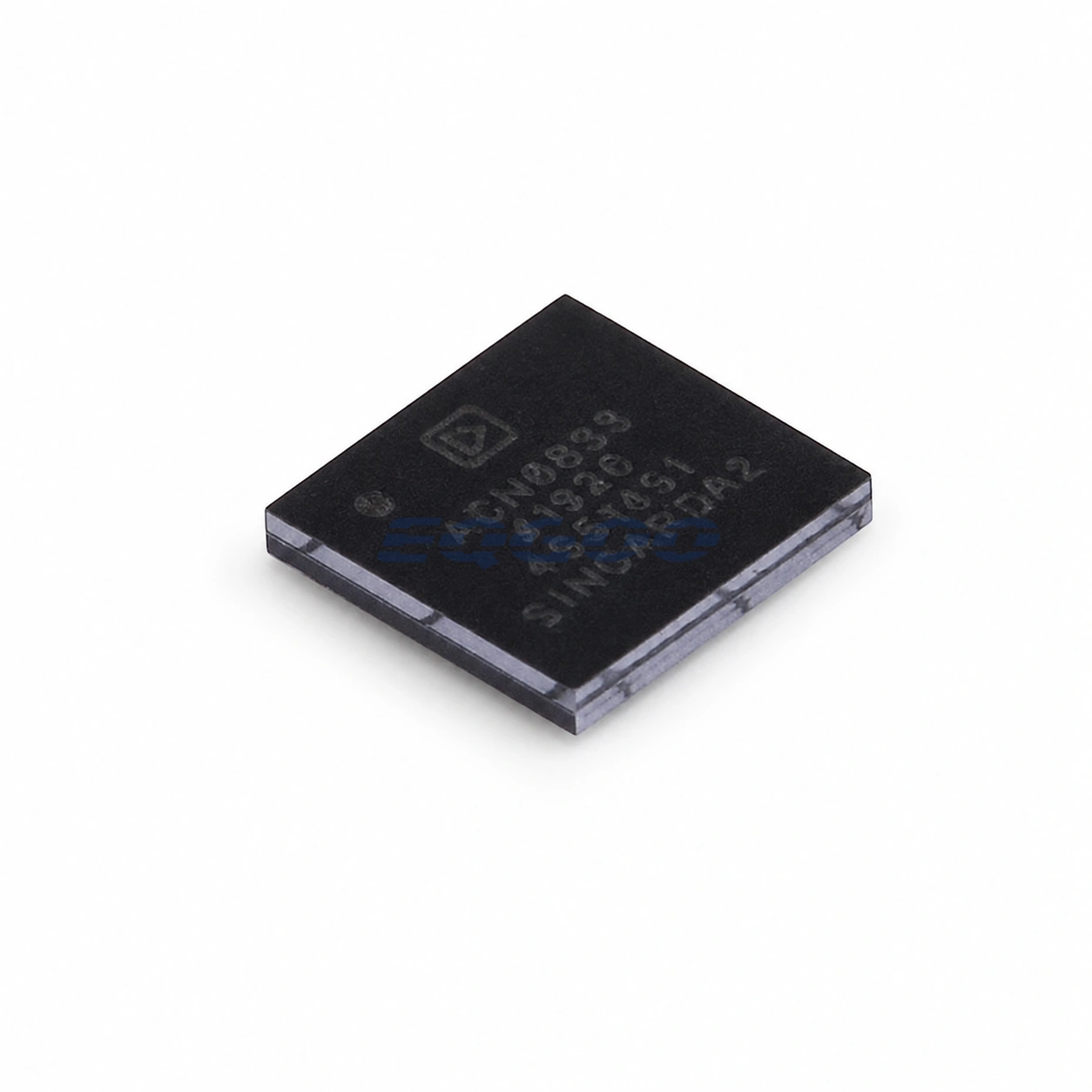

The ADN8833ACBZ-R7 is the 25-ball WLCSP version of Analog Devices’ ultracompact 1 A thermoelectric-cooler driver. It integrates the H-bridge power MOSFETs on chip, combining a linear power stage and a PWM power stage so the device can directly drive a TEC from an external control voltage.
This integrated-power architecture is the key distinction from the ADN8831, which controls external MOSFETs. The ADN8833 operates from 2.7 V to 5.5 V and provides TEC current and voltage monitoring, programmable limits and a 2.5 V reference in a small WLCSP footprint.
Technical Specifications
| Parameter | Confirmed Information |
|---|---|
| TEC driver architecture | Integrated H-bridge |
| Integrated power MOSFET current class | 1 A |
| Supply voltage | 2.7 V to 5.5 V |
| Reference voltage | 2.5 V |
| TEC current monitoring | Supported |
| TEC voltage monitoring | Supported |
| Soft start | Internal |
| Thermal shutdown | 170°C threshold typical specification |
| WLCSP current-measurement accuracy | ±10% in documented high-current range |
| Package | 25-ball WLCSP, CB-25-7 |
| Junction specification range | -40°C to +125°C |
| Ambient operating range | -40°C to +85°C |
Design Considerations
The integrated MOSFETs simplify the BOM, but they also set the practical TEC-current and thermal limits. Verify efficiency and junction temperature at the intended heating/cooling current, input voltage and TEC resistance.
The WLCSP footprint is compact and has tighter assembly/layout requirements than the LFCSP version. Board design should follow the ball-map and thermal recommendations exactly rather than approximating the package from body dimensions alone.
