Key Selection Information
| Selection Parameter | Confirmed Information |
|---|---|
| Function | Broadband RF/IF gain block |
| Frequency range | 30 MHz to 6 GHz |
| Fixed gain | 22.2 dB |
| OIP3 | 40.0 dBm at 900 MHz |
| P1dB | 21.0 dBm at 900 MHz |
| Noise figure | 2.1 dB at 900 MHz |
| Supply | 5 V, 94 mA |
| Package | 3-lead SOT-89 |
Product Overview

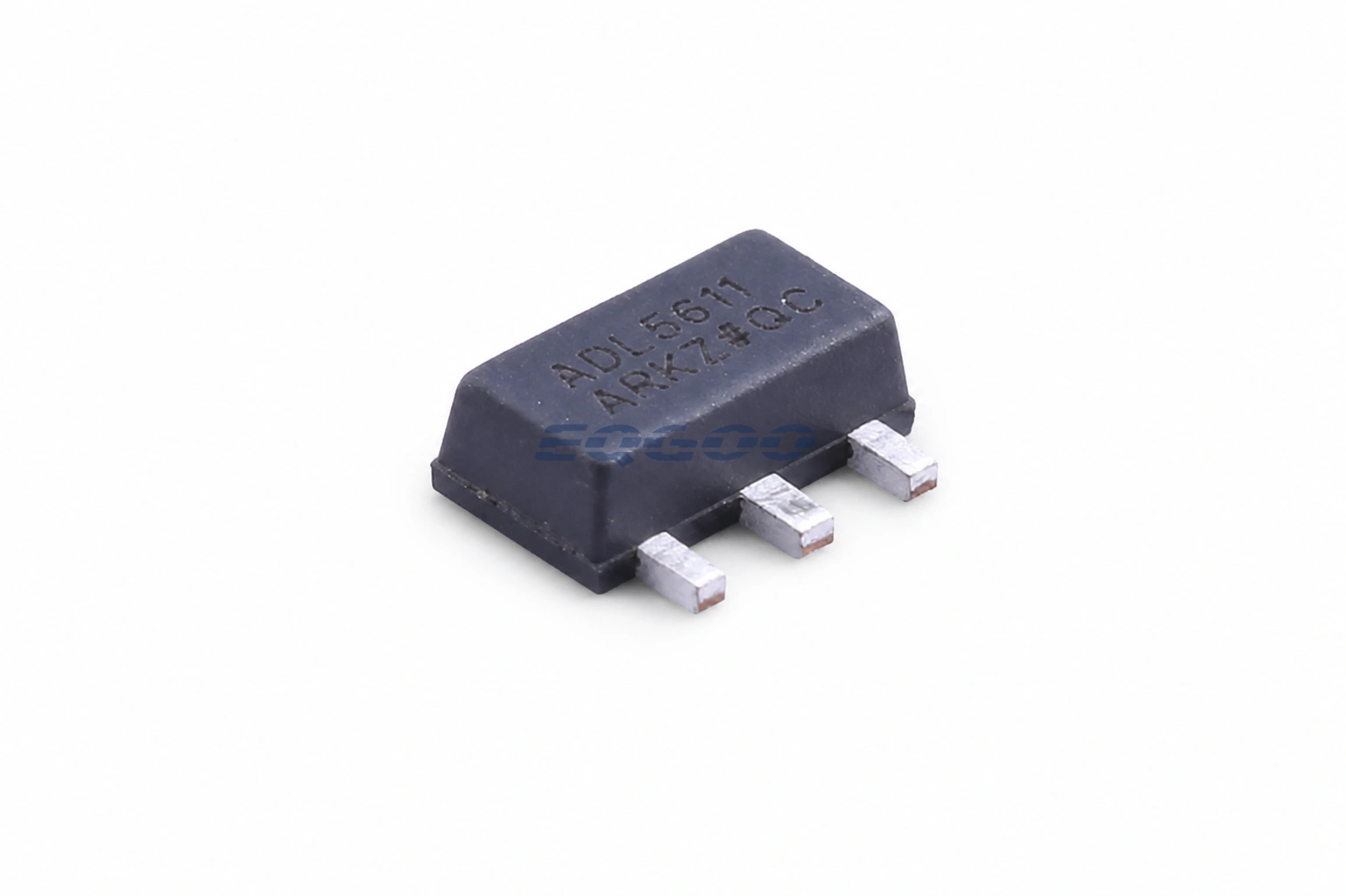

The ADL5611ARKZ-R7 is the tape-and-reel SOT-89 version of Analog Devices’ 30 MHz to 6 GHz RF/IF gain block. It combines 22.2 dB fixed gain with a 2.1 dB noise figure and 40 dBm OIP3 at 900 MHz, providing a high dynamic range where both sensitivity and strong-signal handling matter.
This combination distinguishes it from the ADL5545, which uses less supply current but offers lower headline OIP3, and from the ADL5602, which has lower fixed gain and a different frequency/linearity balance. The exact signal-chain requirement should therefore drive the choice rather than treating all SOT-89 gain blocks as interchangeable.
Technical Specifications
| Parameter | Confirmed Information |
|---|---|
| Frequency range | 30 MHz to 6 GHz |
| Fixed gain | 22.2 dB |
| OIP3 at 900 MHz | 40.0 dBm |
| P1dB at 900 MHz | 21.0 dBm |
| Noise figure at 900 MHz | 2.1 dB |
| Input/output impedance | Internally matched to 50 Ω |
| Supply voltage | 5 V |
| Quiescent current | 94 mA |
| Operating temperature | -40°C to +105°C |
| Package | 3-lead SOT-89 |
| Exact model lifecycle | Production |
| Family guidance | Recommended for new designs |
Design Considerations
The low 2.1 dB noise figure and high OIP3 are specified at 900 MHz; receiver designs at higher frequencies should use the exact frequency plots to determine whether the noise/linearity balance remains appropriate.
With 22.2 dB gain, the available output headroom of later stages can become a limiting factor before the amplifier itself reaches compression. Include downstream filter loss and ADC or mixer input limits in the cascade budget.
