Key Selection Information
| Selection Parameter | Confirmed Information |
|---|---|

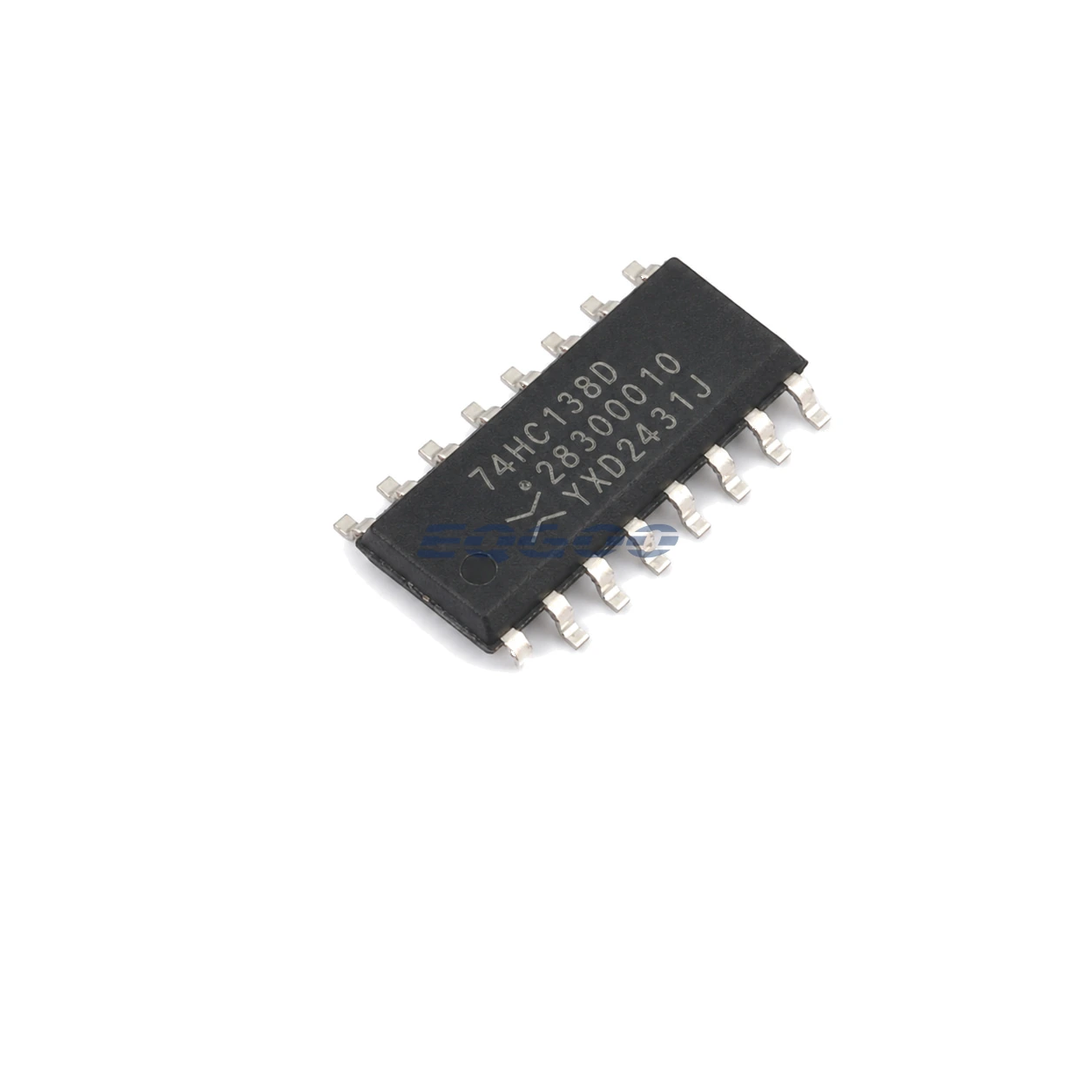

| Manufacturer | Nexperia |
| Exact MPN | 74HC138D,653 |
| Product Category | Signal Switches, Multiplexers, Decoders |
| Package | SOIC-16 |
| Packing | 2,500 pcs/reel |
| Type | Decoder |
| Supply Polarity | Single supply |
| Operating Voltage | 2V to 6V |
| Inputs / Outputs | 3/8 |
Product Overview
3-to-8-line inverting decoder/demultiplexer; three address inputs, three enables, eight mutually exclusive active-LOW outputs. Supports demultiplexing and memory chip-select decoding.
The 2–6 V operating range supports 3.3 V and 5 V logic rails, but the CMOS VIH requirement must be checked at the actual rail. Active-LOW mutually exclusive outputs suit chip-select and one-of-eight enable generation.
Technical Specifications
| Parameter | Verified Information |
|---|---|
| Manufacturer | Nexperia |
| Exact MPN | 74HC138D,653 |
| Functional Category | Signal Switches, Multiplexers, Decoders |
| Package | SOIC-16 |
| Packing | 2,500 pcs/reel |
| Source Catalog ID | C5602 |
| Type | Decoder |
| Supply Polarity | Single supply |
| Operating Voltage | 2V to 6V |
| Inputs / Outputs | 3/8 |
Selection Notes
HC CMOS input thresholds; SO16 versus TSSOP16/DHVQFN16 package; supply range; temperature range; output-current and timing requirement.
Confirm the exact switching/decoding function, channel topology, logic voltage and on-state or output-drive constraints.
Manufacturer Decision-Relevant Notes
Supply: 2.0–6.0 V. ; Temperature: -40 to +125 °C. ; Input logic: CMOS. ; Typical propagation delay: 12 ns. ; Output drive capability: ±5.2 mA. ; VIH: at VCC=2.0 V, min 1.5 V; at VCC=4.5 V, min 3.15 V. ; ESD: HBM >2 kV; CDM >1 kV. ; Thermal: RθJA 93 K/W, RθJC 53 K/W.
Design Considerations
-
- Verify every input meets the HC VIH/VIL limits at the selected VCC, temperature, and interface source. 2. Verify output sink/source current does not exceed the stated ±5.2 mA capability under the required VOH/VOL. 3. Check enable polarity: E1/E2 are active LOW and E3 is active HIGH. 4. Check SO16 SOT109-1 footprint, pinout, thermal assumptions, and assembly process.
Application Fit
Memory/chip-select decoding, 1-of-8 demultiplexing, and expansion to 1-of-32 using multiple devices.
Manufacturer Resources
Quality & Verification Support
Third-party inspection or testing can be arranged according to customer requirements. Testing fees are borne by the buyer. Additional verification requirements can be discussed before shipment. Physical product, label, packaging, and Date Code photos may be provided where appropriate.
Request a Quote
For 74HC138D,653 quotation, provide the exact MPN, required quantity, destination, target Date Code if applicable, and any inspection or testing requirements.
