Device Overview

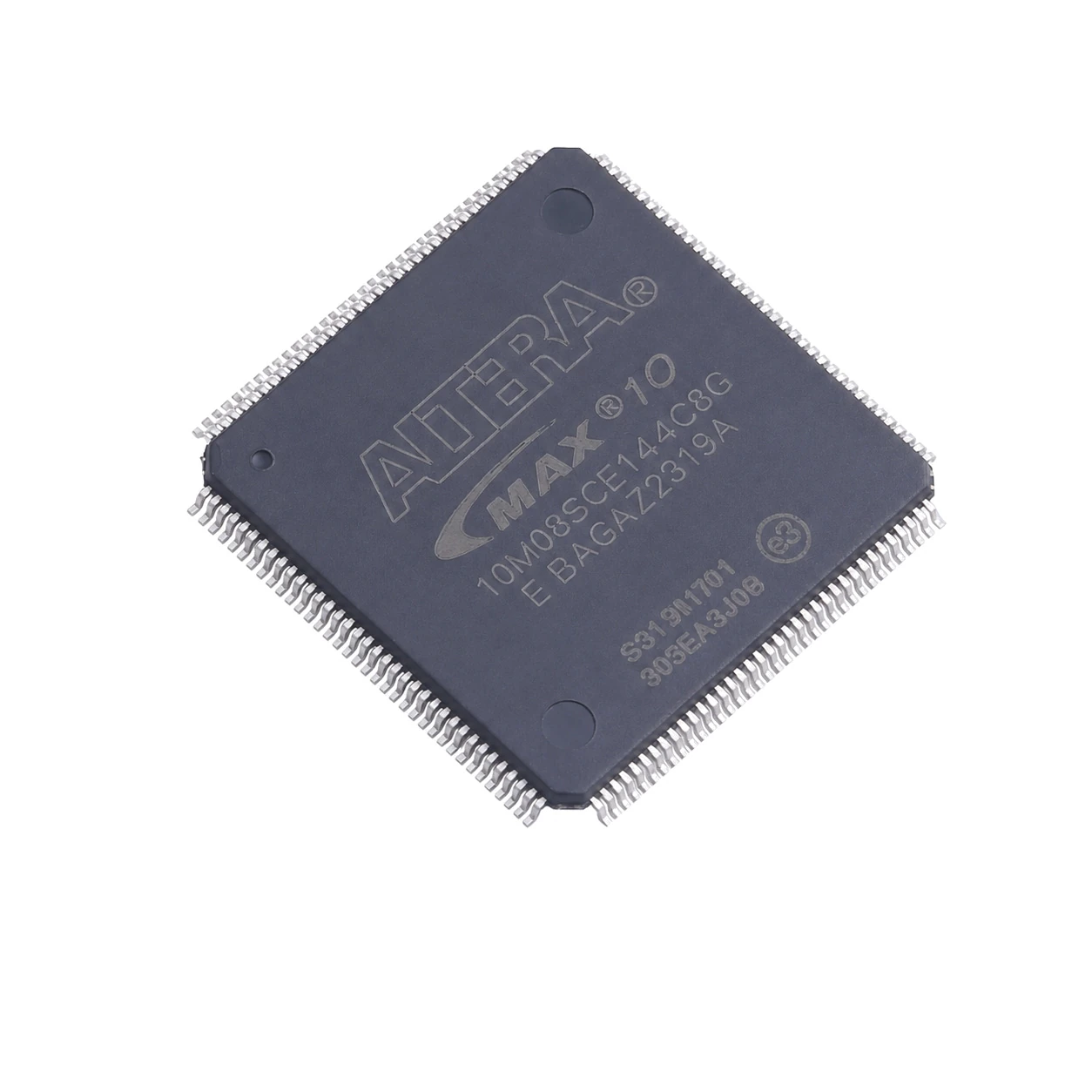

10M08SCE144C8G is the digital-focused counterpart to the Analog E144 device. It uses the same 8K-LE class of MAX 10 silicon and the same 101-GPIO E144 package, but the SC ordering code selects single-supply Compact behavior.
Compact means one internal configuration image and no integrated ADC. For designs that only need programmable logic, on-chip RAM and deterministic digital I/O, removing Analog-option requirements can simplify the intended device feature set.
Confirmed Technical and Ordering Data
| Parameter | Confirmed value | Scope / condition |
|---|---|---|
| Logic Family | MAX 10 FPGA | 55 nm MAX 10 family |
| Logic Capacity | 8,000 logic elements | 10M08 device resource count |
| Embedded Memory | 378 Kb M9K | volatile embedded M9K memory |
| Embedded Multipliers | 24 18×18 blocks | dedicated multiplier count |
| Pll Count | 1 PLL | exact-package available PLL count; device-density maximum is package-dependent |
| Supply Architecture | Single-supply | S ordering-code power architecture |
| Feature Option | Compact | C ordering-code feature option |
| Configuration Image | One internal configuration image | Compact feature-option behavior |
| Integrated Adc | No integrated ADC | Compact does not include Analog-option ADC |
| Package Io | 101 GPIO | 10M08 in E144; package-specific user I/O |
| Package | E144 144-pin EQFP (22×22 mm, 0.5 mm pitch) | exact physical package |
| Speed Environment Grade | Commercial -8 | C8 exact ordering grade |
| Lifecycle | In Production | current Altera exact product lifecycle |
| Shipping Media | Tray | current exact product page shipping media |
Engineering Selection Guidance
The 101-GPIO package limit is identical to the SA E144 version, so the real selection axis is feature option, not pin count.
Do not claim ADC capability for this SC device. If analog monitoring or dual-image recovery is required, the designer needs an Analog/Flash option rather than a firmware workaround.
C8 is the commercial -8 grade. Keep the grade explicit in procurement because MAX 10 E144 parts also exist in industrial and automotive variants.
Lifecycle and Procurement
Altera currently lists exact OPN 10M08SCE144C8G as **In Production**. This lifecycle statement does not state HKEQGOO stock, lead time or final supplier availability.
