Key Selection Information
| Selection Parameter | Confirmed Information |
|---|---|
| Control | Peak current-mode PWM |
| Frequency | Up to 1 MHz |
| Startup Current | 50 µA typical / 100 µA maximum stated |
| Operating Current | 2.3 mA stated at 52 kHz family condition |
| Gate Drive | ±1 A peak |
| Current Limit | 35 ns stated cycle-by-cycle response |
| UVLO / Duty | 8.4 V / 7.6 V UVLO class; 50% maximum duty-cycle variant |
| Exact Package / Packing | SOIC (D), 8 pins; 2500-piece large reel; −40°C to +125°C; marking 28C45 |
Product Overview
UCC28C45DR shares the UCC28C4x low-power current-mode architecture but intentionally limits maximum duty cycle to 50%. This is useful in transformer/forward-derived applications where enforced off-time helps guarantee magnetic reset.
The device retains low startup current, fast current limiting and a ±1-A gate driver, making it a drop-in-style modernization for many UC3845-class designs.
Because C43 and C45 look nearly identical in headline frequency/UVLO data, duty-cycle limit must be treated as a first-order topology constraint rather than an incidental suffix.
For related devices, see HKEQGOO’s AC-DC Controllers category.
Technical Specifications
| Parameter | Verified Information |
|---|---|
| Manufacturer | Texas Instruments |
| Exact MPN | UCC28C45DR |
| Control | Peak current-mode PWM |
| Frequency | Up to 1 MHz |
| Startup Current | 50 µA typical / 100 µA maximum stated |
| Operating Current | 2.3 mA stated at 52 kHz family condition |
| Gate Drive | ±1 A peak |
| Current Limit | 35 ns stated cycle-by-cycle response |
| UVLO / Duty | 8.4 V / 7.6 V UVLO class; 50% maximum duty-cycle variant |
| Exact Package / Packing | SOIC (D), 8 pins; 2500-piece large reel; −40°C to +125°C; marking 28C45 |
| Manufacturer Status | Active / Production |

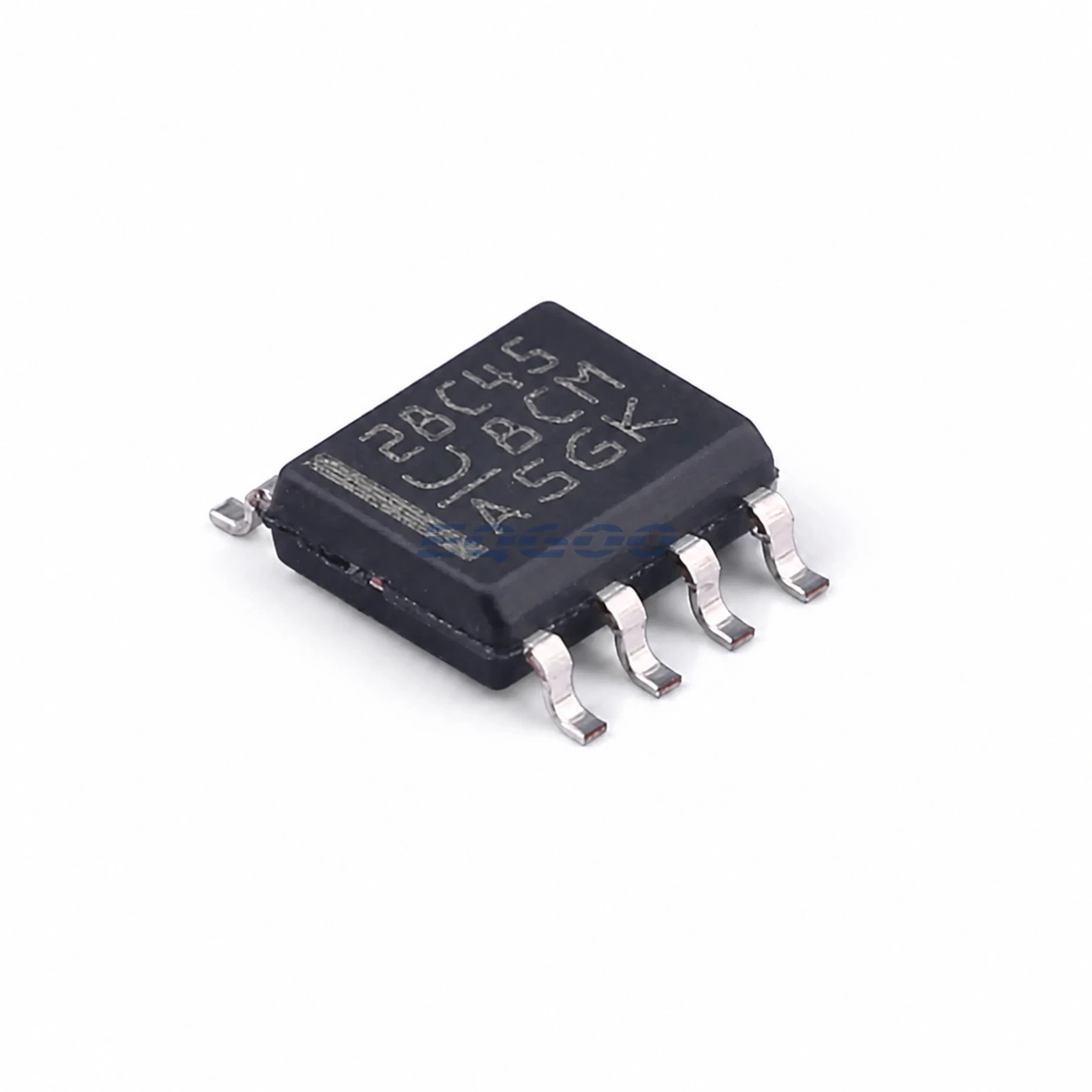

| Part Marking | 28C45 |
Functional Highlights
50% limit can protect magnetic reset margin
The controller prevents duty commands beyond half a cycle, simplifying transformer reset assumptions in applicable topologies.
BiCMOS implementation lowers controller power
Low startup and operating current can improve standby efficiency versus older bipolar PWM controllers.
Design Considerations
- Confirm the topology can deliver required output at a 50% duty ceiling across low line.
- Use current-transformer/shunt filtering that preserves the 35-ns-class protection intent.
- Do not substitute C43/C45 solely on pin compatibility.
Product Status and Exact Order Code
Texas Instruments/source evidence identifies UCC28C45DR as Active / Production; SOIC (D), 8 pins; 2500-piece large tape and reel; −40°C to +125°C; marking 28C45.
