Key Selection Information
| Selection Parameter | Confirmed Information |
|---|---|
| Input | 2.7 V to 18 V |
| Continuous Current | 3 A maximum for DRV WSON package, subject to thermal design |
| On-Resistance | 79 mΩ typical at 12 V stated |
| Rise Time | Configurable with CT pin |
| Output Discharge | Adjustable quick output discharge |
| Protection | Thermal shutdown and UVLO |
| Package Advantage | 2 mm × 2 mm WSON with exposed thermal pad |
| Exact Package / Packing | WSON (DRV), 6 pins; 3000-piece large reel; −40°C to +105°C; marking 1CRH |
Product Overview

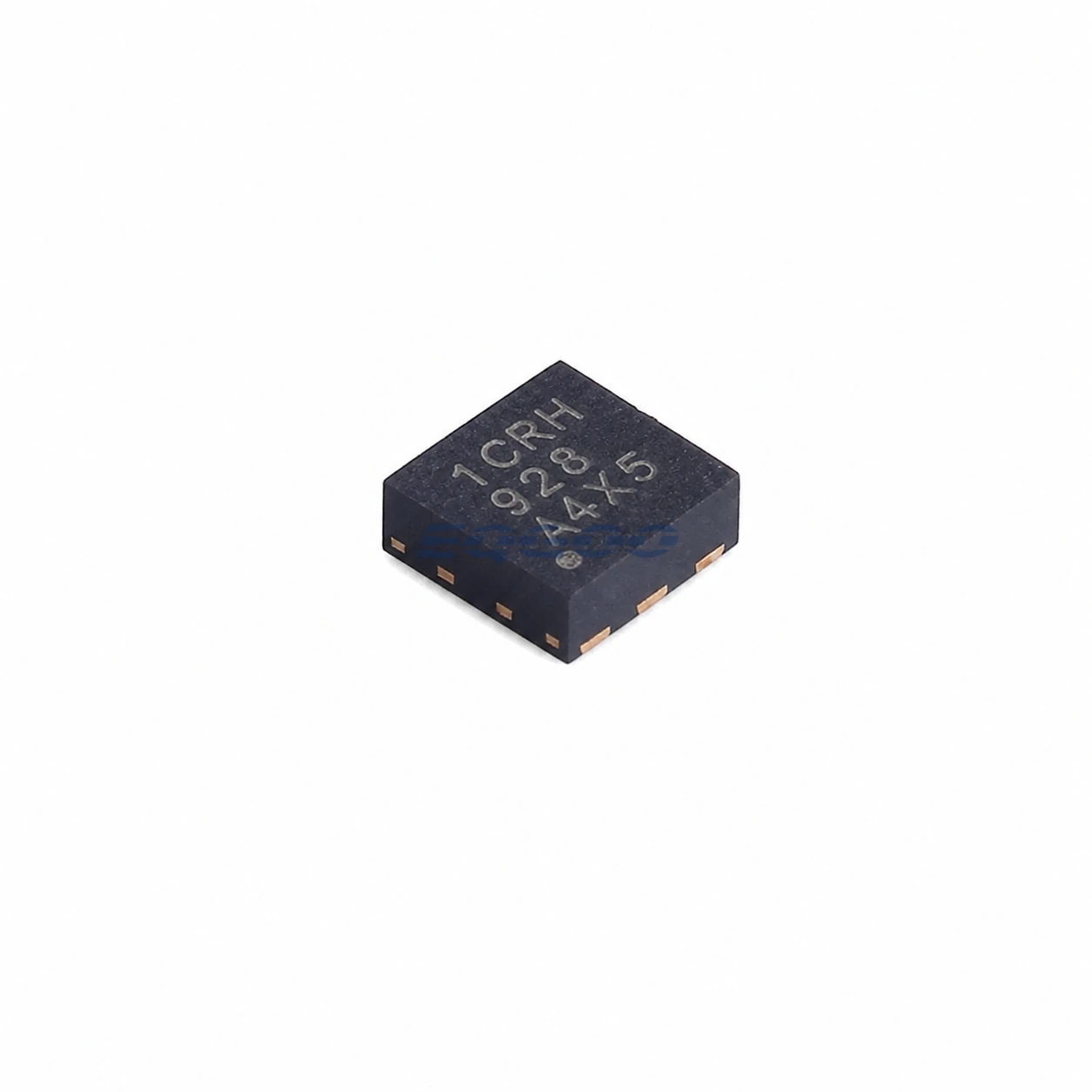

TPS22810DRVR is the compact leadless version of TPS22810 and is rated for up to 3 A continuous current when thermal conditions permit. It retains the 18 V input range, programmable turn-on ramp and adjustable output discharge.
The extra current capability versus DBVR comes from the package/thermal implementation, not a different basic switch controller. A design changing from SOT-23 to WSON must therefore change footprint, solder process and heat-spreading copper.
At higher current the 79-mΩ-class resistance creates meaningful conduction loss, so the 3-A rating must be checked against actual VIN, ambient and PCB thermal resistance rather than treated as unconditional.
For related devices, see HKEQGOO’s Power Distribution Switches, Load Drivers category.
Technical Specifications
| Parameter | Verified Information |
|---|---|
| Manufacturer | Texas Instruments |
| Exact MPN | TPS22810DRVR |
| Input | 2.7 V to 18 V |
| Continuous Current | 3 A maximum for DRV WSON package, subject to thermal design |
| On-Resistance | 79 mΩ typical at 12 V stated |
| Rise Time | Configurable with CT pin |
| Output Discharge | Adjustable quick output discharge |
| Protection | Thermal shutdown and UVLO |
| Package Advantage | 2 mm × 2 mm WSON with exposed thermal pad |
| Exact Package / Packing | WSON (DRV), 6 pins; 3000-piece large reel; −40°C to +105°C; marking 1CRH |
| Manufacturer Status | Active / Production |
| Part Marking | 1CRH |
Functional Highlights
WSON thermal path enables the higher 3-A package rating
The exposed pad and compact copper connection reduce thermal resistance compared with the leaded package when laid out correctly.
Same slew/QOD controls support high-current rail sequencing
Even a multi-amp rail can start gently if CT is chosen from capacitance and allowed input-supply disturbance.
Design Considerations
- Use exposed-pad copper/vias according to TI layout guidance to approach the 3-A thermal capability.
- Calculate I²R loss at the real load current and worst-case RON/temperature.
- Do not drop this DRV part onto the DBV footprint; package identity is a real mechanical/thermal change.
Product Status and Exact Order Code
Manufacturer status: Active / Production
Texas Instruments lists TPS22810DRVR as Active / Production; WSON (DRV), 6 pins; 3000-piece large tape and reel; −40°C to +105°C; marking 1CRH.
