Key Selection Information
| Selection Parameter | Confirmed Information |
|---|---|
| Channels | 1 high-side power switch |
| Rated Load | 0.5 A class |
| Input | 4.5 V to 5.5 V for exact TPS2051C use case |
| Current Limit | Fixed ±20%-accuracy constant-current limiting family architecture |
| Response | 2 µs stated fast overcurrent response |
| Protection | Reverse-current blocking, built-in soft start and thermal protection |
| Output State | TPS20xxC variants include output discharge |

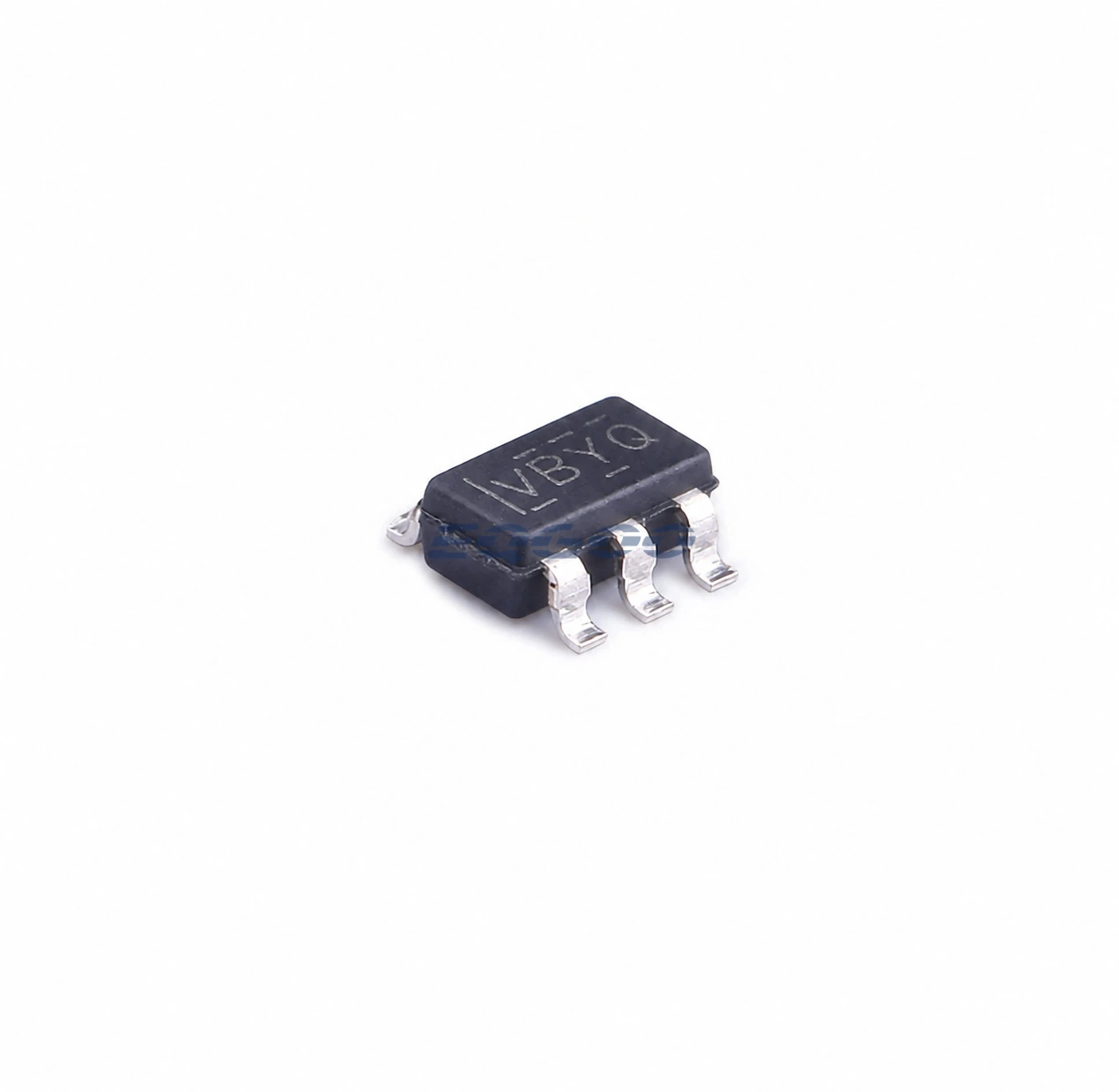

| Exact Package / Packing | SOT-23 (DBV), 5 pins; 3000-piece large reel; marking VBYQ |
Product Overview
TPS2051CDBVR is the newer 0.5-A USB power-switch generation with tighter fixed current limiting, fast overload response, reverse-current blocking and output discharge. It is optimized around the 5 V USB supply range rather than the broader 2.7–5.5 V range of TPS2051B.
Reverse blocking helps prevent an externally powered downstream node from feeding current back into the upstream 5 V rail. Output discharge actively brings the port down after disable, which can improve deterministic power cycling.
Those C-generation behaviors are system-level differences, not marketing decoration. A board migrating from TPS2051B should verify supply range, fault timing and disable-state expectations.
For related devices, see HKEQGOO’s Power Distribution Switches, Load Drivers category.
Technical Specifications
| Parameter | Verified Information |
|---|---|
| Manufacturer | Texas Instruments |
| Exact MPN | TPS2051CDBVR |
| Channels | 1 high-side power switch |
| Rated Load | 0.5 A class |
| Input | 4.5 V to 5.5 V for exact TPS2051C use case |
| Current Limit | Fixed ±20%-accuracy constant-current limiting family architecture |
| Response | 2 µs stated fast overcurrent response |
| Protection | Reverse-current blocking, built-in soft start and thermal protection |
| Output State | TPS20xxC variants include output discharge |
| Exact Package / Packing | SOT-23 (DBV), 5 pins; 3000-piece large reel; marking VBYQ |
| Manufacturer Status | Active / Production |
| Part Marking | VBYQ |
Functional Highlights
Reverse-current blocking protects multi-source USB/power paths
An externally energized load or cable is less likely to back-power the host rail through the switch.
Fast fixed current limit reduces upstream rail disturbance
A short is constrained quickly, helping the main 5 V supply remain regulated for other ports/devices.
Design Considerations
- Keep VIN within the exact C-generation operating range.
- Verify output-discharge behavior is safe for any downstream energy-storage or shared-rail connection.
- Size thermal copper for repeated current-limit events; protection is not a substitute for fault-duty analysis.
Product Status and Exact Order Code
Manufacturer status: Active / Production
Texas Instruments lists TPS2051CDBVR as Active / Production; SOT-23 (DBV), 5 pins; 3000-piece large tape and reel; −40°C to +125°C; marking VBYQ.
