Key Selection Information
| Selection Parameter | Confirmed Information |
|---|---|
| GPIO | 8 configurable I/O pins |
| Supply | 1.65 V to 5.5 V |
| Bus | I²C/SMBus up to 400 kHz |
| Addressing | 3 address pins; up to 8 devices |
| Interrupt | Open-drain active-low INT |
| Registers | Input/output/configuration/polarity inversion |
| Startup | All channels inputs; no-glitch power-up |
| Exact Package / Packing | TSSOP (PW), 16 pins; 2000-piece large tape and reel |
Product Overview
TCA9554PWR is an 8-bit I²C GPIO expander for low-voltage systems with up to eight hardware address choices. Its basic register model is deliberately simple: direction, output, input and polarity inversion are controlled through four main register functions.
For new designs, its selection is often driven by compatibility with an existing 9554 register/address convention or BOM rather than a unique feature absent from every other 8-bit expander. Skill01 therefore preserves that exact-family value instead of inventing unsupported differences from TCA9534.

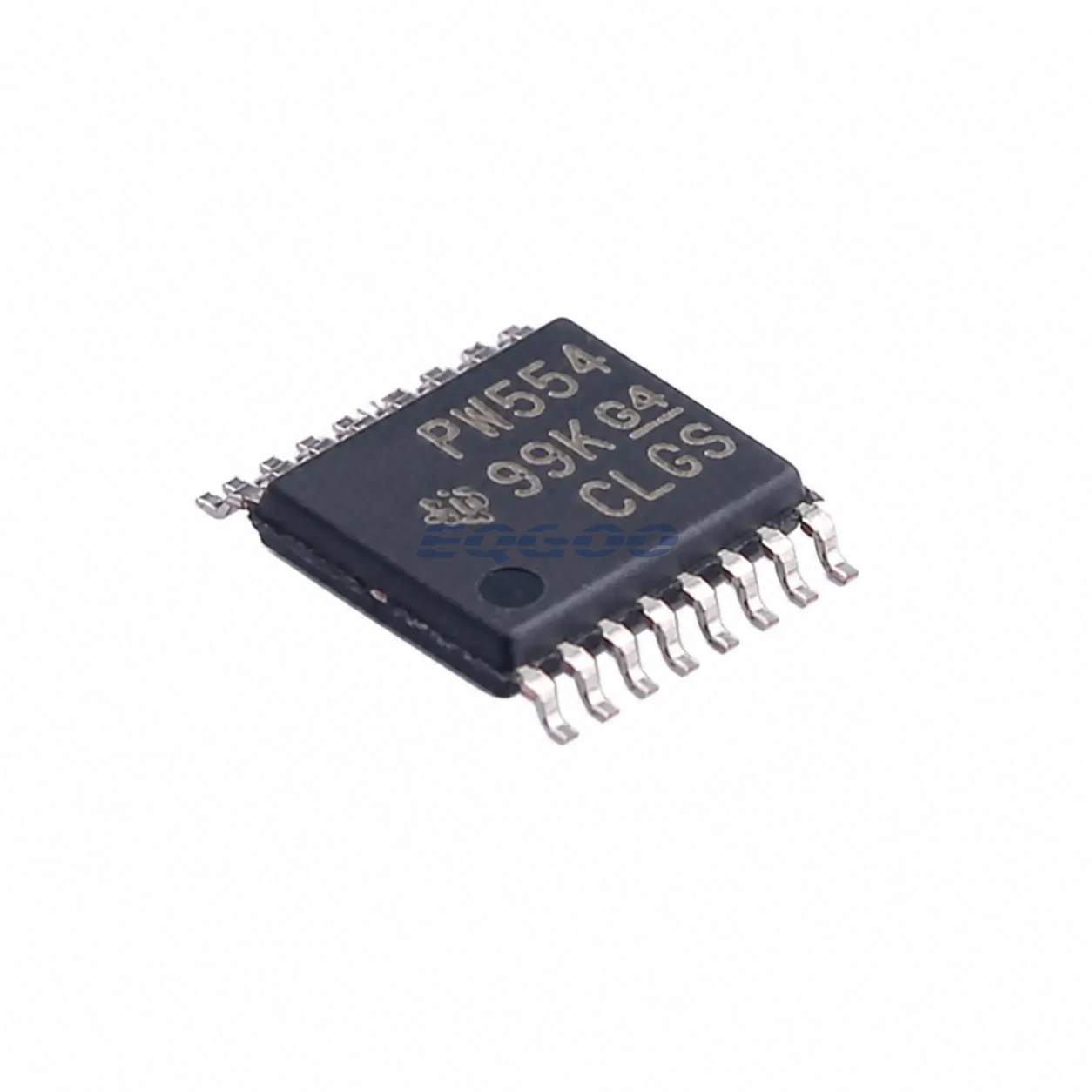

The PWR code is the standard 2000-piece TSSOP reel option with visible gull-wing leads.
For related devices, see HKEQGOO’s I/O Expanders category.
Technical Specifications
| Parameter | Verified Information |
|---|---|
| Manufacturer | Texas Instruments |
| Exact MPN | TCA9554PWR |
| GPIO | 8 configurable I/O pins |
| Supply | 1.65 V to 5.5 V |
| Bus | I²C/SMBus up to 400 kHz |
| Addressing | 3 address pins; up to 8 devices |
| Interrupt | Open-drain active-low INT |
| Registers | Input/output/configuration/polarity inversion |
| Startup | All channels inputs; no-glitch power-up |
| Exact Package / Packing | TSSOP (PW), 16 pins; 2000-piece large tape and reel |
| Manufacturer Status | Active / Production |
| Part Marking | TCA9554 family PWR marking per TI addendum |
Functional Highlights
Register-family compatibility can be more important than feature-count differences
Firmware already written around the 9554 register/address behavior may justify retaining TCA9554 even when another 8-bit expander has similar headline GPIO count.
Simple interrupt/output behavior keeps firmware small
The device does not add keypad FIFO, translating dual rails or hardware reset; that simplicity can be useful when those functions are unnecessary.
Design Considerations
- Verify software register/address expectations against TCA9554 rather than assuming any 8-bit I²C expander is drop-in compatible.
- Provide safe external bias during the default-input startup state.
- Check bus pull-up and interrupt sharing if multiple devices use the same open-drain lines.
Product Status and Exact Order Code
Manufacturer status: Active / Production
Texas Instruments lists TCA9554PWR as Active / Production; TSSOP (PW), 16 pins; 2000-piece large tape and reel; −40°C to +85°C.
