Key Selection Information

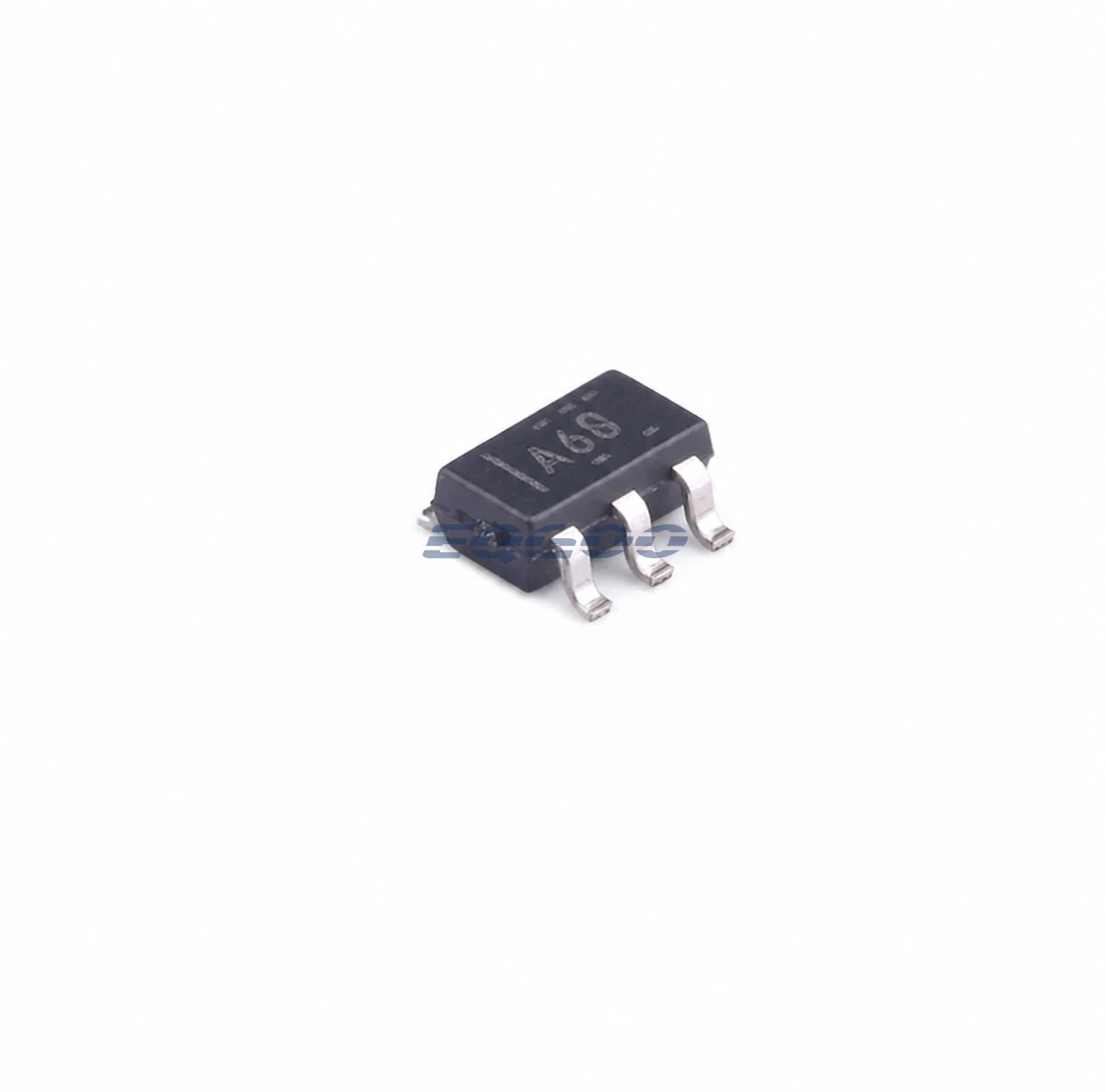

| Selection Parameter | Confirmed Information |
|---|---|
| Measurement | Unipolar high-side current sensing |
| Supply / Common Mode | 2.7 V to 60 V recommended |
| Full-Scale Sense Voltage | 100 mV to 500 mV recommended |
| Quiescent Current | 25 µA typical |
| Transconductance | 200 µA/V typical |
| Gain Setting | External RL converts output current to voltage |
| Temperature | −40°C to +125°C |
| Exact Package / Packing | SOT-23 (DBV), 5 pins; 3000-piece large tape and reel |
Product Overview
INA168NA/3K extends the low-power INA138 architecture to a 60 V recommended supply and common-mode range. The amplifier converts shunt voltage to output current with approximately 200 µA/V transconductance, and RL then determines the voltage gain seen by the next stage.
The key design freedom is also the key design constraint: RL affects output amplitude, output headroom and bandwidth. A large resistor can produce the desired nominal gain on paper while causing saturation or insufficient transient response in the real bus-voltage range.
For purchasing, the /3K suffix identifies the 3000-piece large tape-and-reel SOT-23-5 option.
For related devices, see HKEQGOO’s Current Sense Amplifiers category.
Technical Specifications
| Parameter | Verified Information |
|---|---|
| Manufacturer | Texas Instruments |
| Exact MPN | INA168NA/3K |
| Measurement | Unipolar high-side current sensing |
| Supply / Common Mode | 2.7 V to 60 V recommended |
| Full-Scale Sense Voltage | 100 mV to 500 mV recommended |
| Quiescent Current | 25 µA typical |
| Transconductance | 200 µA/V typical |
| Gain Setting | External RL converts output current to voltage |
| Temperature | −40°C to +125°C |
| Exact Package / Packing | SOT-23 (DBV), 5 pins; 3000-piece large tape and reel |
| Manufacturer Status | Active / Production |
| Part Marking | A68 |
Functional Highlights
60 V high-side measurement is independent of the logic/monitor supply rail
The measured bus and the V+ pin can be different voltages. This is useful when a low-voltage controller monitors a substantially higher power rail.
Gain is a system relationship, not a fixed IC number
The transfer includes RS and RL. Full-scale current, shunt dissipation, ADC range and required bandwidth therefore need to be solved together.
Design Considerations
- Select RS for acceptable power loss and full-scale VSENSE before choosing RL.
- Check calculated VOUT against output compliance across the minimum V+ and VIN− conditions.
- Use Kelvin shunt routing and minimize resistance between the shunt and input pins.
Product Status and Exact Order Code
Manufacturer status: Active / Production
Texas Instruments lists INA168NA/3K as Active / Production; SOT-23 (DBV), 5 pins; 3000-piece large tape and reel; Level-2-260C-1 YEAR; −40°C to +125°C; marking A68.
