Key Selection Information
| Selection Parameter | Confirmed Information |
|---|---|
| Function | Precision voltage-to-current converter/transmitter |
| Output Ranges | 0–20 mA, 4–20 mA, 5–25 mA; up to 32 mA source |
| Transfer Setting | Single RSET sets input-voltage/output-current ratio |
| Accuracy / Linearity | 0.015% accuracy; 0.002% nonlinearity stated features |
| Supply | 7 V to 44 V single supply |
| Auxiliary | Adjustable 3 V to 15 V regulator; error flag and output disable |
| External Pass Device | Uses external P-MOSFET for output compliance/power |
| Exact Package / Packing | HVSSOP (DGQ), 10 pins; 2500-piece large tape and reel |
Product Overview

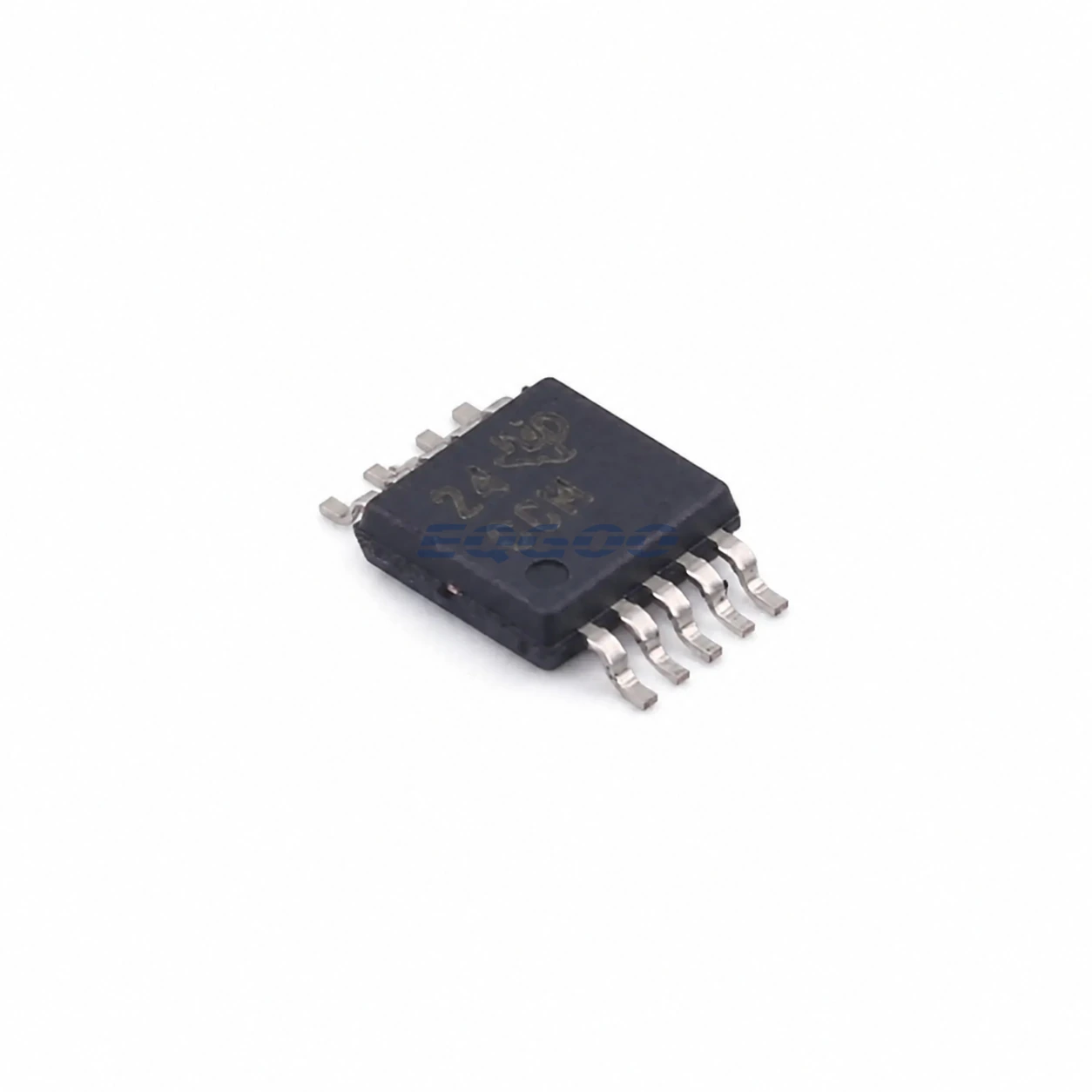

XTR111AIDGQR converts an input voltage into a precision industrial current output using one RSET resistor and an external P-channel MOSFET. The external transistor moves most loop/output power dissipation out of the IC and allows a broad compliance range.
DGQR is the 2500-piece large-reel version of the 10-pin HVSSOP package. It has the same electrical core as DGQT, but the reel quantity is different; procurement systems should retain the full suffix even though PCB footprint/function are shared.
The adjustable 3–15 V regulator can power nearby signal-conditioning circuitry, while EF and OD provide loop-fault visibility and output control. Those system pins make XTR111 more than a simple op-amp current source.
For related devices, see HKEQGOO’s ADCs/DACs – Special Purpose category.
Technical Specifications
| Parameter | Verified Information |
|---|---|
| Manufacturer | Texas Instruments |
| Exact MPN | XTR111AIDGQR |
| Function | Precision voltage-to-current converter/transmitter |
| Output Ranges | 0–20 mA, 4–20 mA, 5–25 mA; up to 32 mA source |
| Transfer Setting | Single RSET sets input-voltage/output-current ratio |
| Accuracy / Linearity | 0.015% accuracy; 0.002% nonlinearity stated features |
| Supply | 7 V to 44 V single supply |
| Auxiliary | Adjustable 3 V to 15 V regulator; error flag and output disable |
| External Pass Device | Uses external P-MOSFET for output compliance/power |
| Exact Package / Packing | HVSSOP (DGQ), 10 pins; 2500-piece large tape and reel |
| Manufacturer Status | Active / Production |
| Part Marking | CCM |
Functional Highlights
External PMOS choice sets compliance and thermal margin
The transistor’s VDS, power dissipation and safe operating area must cover worst-case supply/load/current conditions; choosing RSET alone does not complete the output-stage design.
DGQR versus DGQT is a packing decision, not a signal-chain redesign
Both use the DGQ footprint; DGQR supplies 2500 per large reel while DGQT is the 250-piece small reel. This distinction matters to production purchasing, not board electrical behavior.
Design Considerations
- Size the external PMOS for worst-case voltage drop and current with thermal margin.
- Choose RSET tolerance/tempco from required loop accuracy.
- Budget regulator load current and output compliance together so auxiliary circuitry does not compromise current-output range.
Product Status and Exact Order Code
Manufacturer status: Active / Production
Texas Instruments lists XTR111AIDGQR as Active / Production; HVSSOP (DGQ), 10 pins; 2500-piece large tape and reel; Level-2-260C-1 YEAR; −40°C to +125°C; marking CCM.
