Key Selection Information

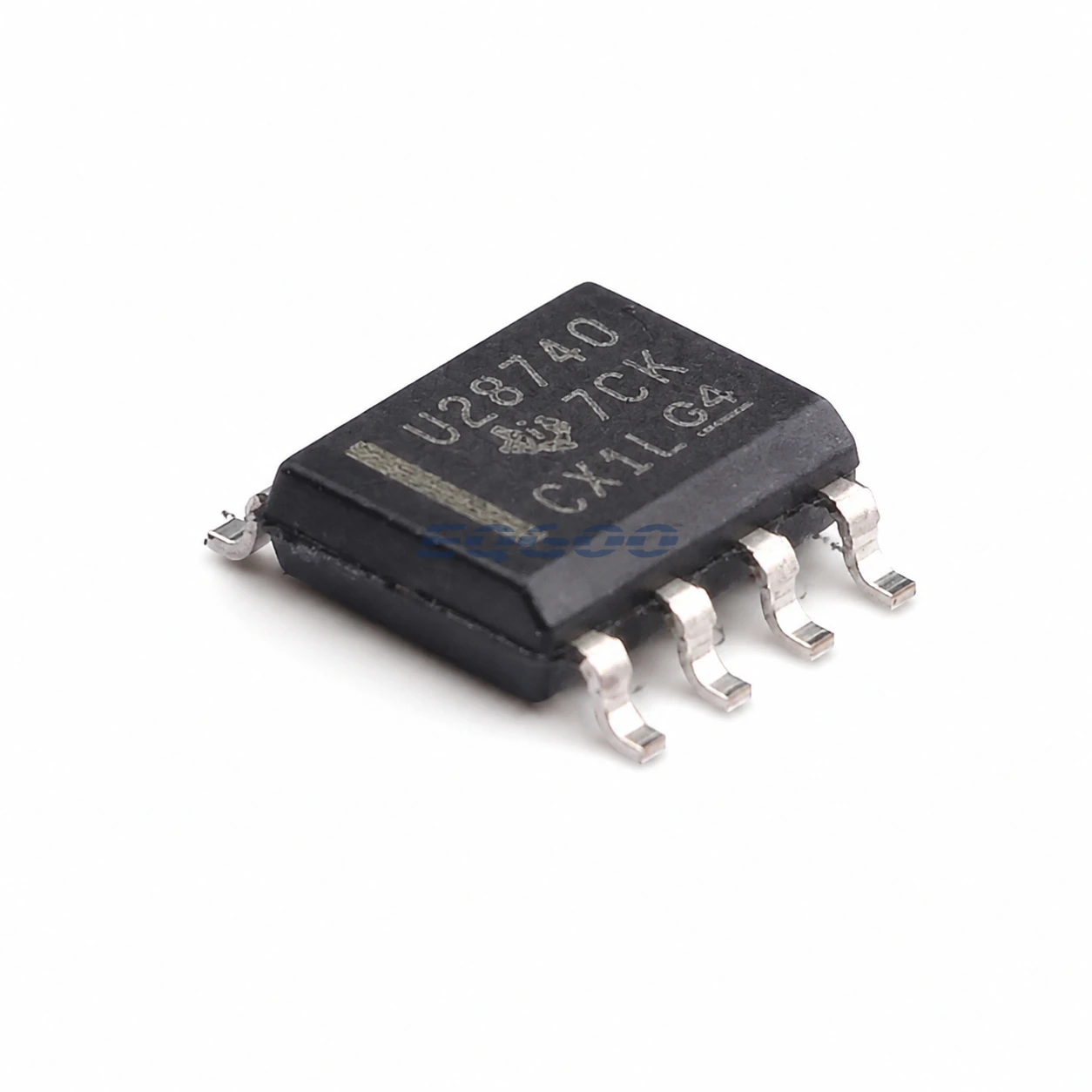

| Selection Parameter | Confirmed Information |
|---|---|
| Topology | Isolated flyback controller |
| Regulation | Optocoupled secondary-side voltage feedback plus primary-side current regulation |
| Startup | Integrated 700-V startup switch stated |
| Switching | Up to 100 kHz; valley-switching operation |
| No-Load Power | Less than 10 mW capability stated |
| Regulation | ±1% voltage / ±5% current stated design capability |
| Protection | Overvoltage, low-line and overcurrent functions; frequency dithering for EMI |
| Exact Package / Packing | SOIC (D), 7 pins; 2500-piece large reel; −40°C to +125°C; marking U28740 |
Product Overview
UCC28740DR is a charger/adapter flyback controller designed around constant-voltage and constant-current output behavior. It uses optocoupled feedback for accurate CV regulation while using primary-side information for current regulation.
Valley switching reduces MOSFET turn-on loss and EMI compared with hard switching at arbitrary drain voltage. Frequency dithering further spreads spectral energy, useful in compact adapters that must pass conducted/radiated limits.
The integrated 700-V startup switch reduces high-value startup resistor loss and helps achieve very low no-load power. The exact DR code is a 2500-piece SOIC-7 reel.
For related devices, see HKEQGOO’s AC-DC Controllers category.
Technical Specifications
| Parameter | Verified Information |
|---|---|
| Manufacturer | Texas Instruments |
| Exact MPN | UCC28740DR |
| Topology | Isolated flyback controller |
| Regulation | Optocoupled secondary-side voltage feedback plus primary-side current regulation |
| Startup | Integrated 700-V startup switch stated |
| Switching | Up to 100 kHz; valley-switching operation |
| No-Load Power | Less than 10 mW capability stated |
| Regulation | ±1% voltage / ±5% current stated design capability |
| Protection | Overvoltage, low-line and overcurrent functions; frequency dithering for EMI |
| Exact Package / Packing | SOIC (D), 7 pins; 2500-piece large reel; −40°C to +125°C; marking U28740 |
| Manufacturer Status | Active / Production |
| Part Marking | U28740 |
Functional Highlights
Hybrid CV/CC feedback targets charger behavior
Optocoupled CV gives tight output-voltage control while primary-side current regulation avoids duplicating full secondary current-control circuitry.
Very-low no-load power is part of the architecture
Startup and burst/frequency-management behavior are designed for adapter efficiency standards, not only full-load conversion efficiency.
Design Considerations
- Design transformer auxiliary winding and optocoupler compensation together with the controller’s sampled regulation scheme.
- Verify valley-switching timing across line/load extremes and MOSFET drain ringing.
- Treat creepage/isolation and secondary feedback safety components as system requirements beyond the IC.
Product Status and Exact Order Code
Texas Instruments/source evidence identifies UCC28740DR as Active / Production; SOIC (D), 7 pins; 2500-piece large tape and reel; −40°C to +125°C; marking U28740.
