Key Selection Information

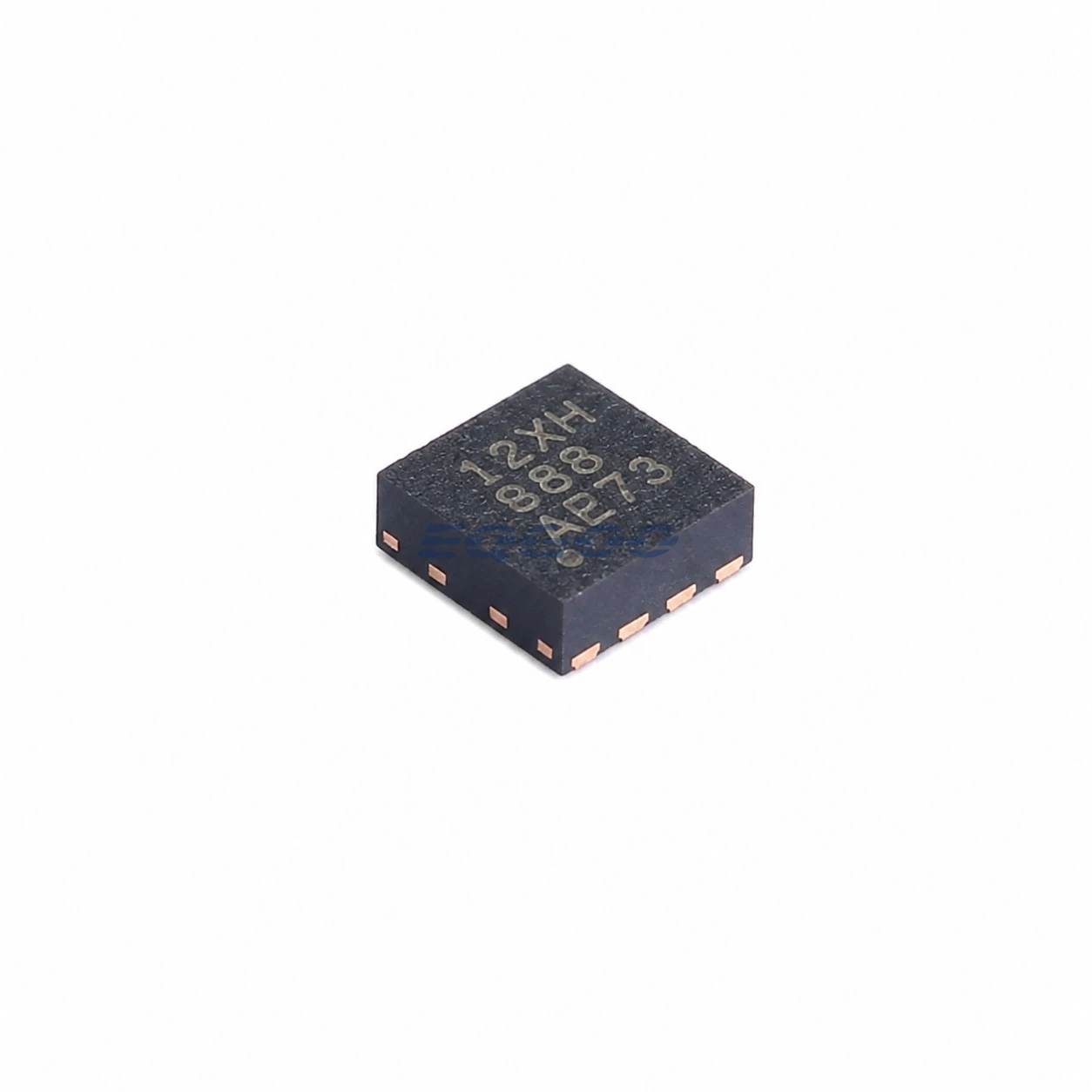

| Selection Parameter | Confirmed Information |
|---|---|
| Load Input | 0.6 V to VBIAS |
| Bias Supply | 2.5 V to 5.7 V |
| Continuous Current | 6 A maximum stated |
| On-Resistance | 16 mΩ typical with VBIAS = 5.7 V |
| Quiescent Current | 37 µA typical at VIN = VBIAS = 5 V |
| Logic | Compatible with 1.2/1.8/2.5/3.3-V control levels |
| Timing / Protection | Configurable rise time, thermal shutdown, optional QOD |
| Exact Package / Packing | WSON (DSG), 8 pins, 2 mm × 2 mm; 3000-piece large reel; marking 13XH |
Product Overview
TPS22975DSGR is a high-current low-RON load switch for processor, SSD and telecom subrails. A separate VBIAS supply lets the internal gate drive maintain low resistance even when the switched VIN rail is as low as 0.6 V.
At 6 A, the 16-mΩ typical resistance still produces significant conduction heat, so exposed-pad layout and copper spreading are essential. The current rating is only useful when the board thermal design supports it.
The separate bias rail also changes sequencing considerations: VBIAS availability and control logic must be considered independently from the switched VIN domain.
For related devices, see HKEQGOO’s Power Distribution Switches, Load Drivers category.
Technical Specifications
| Parameter | Verified Information |
|---|---|
| Manufacturer | Texas Instruments |
| Exact MPN | TPS22975DSGR |
| Load Input | 0.6 V to VBIAS |
| Bias Supply | 2.5 V to 5.7 V |
| Continuous Current | 6 A maximum stated |
| On-Resistance | 16 mΩ typical with VBIAS = 5.7 V |
| Quiescent Current | 37 µA typical at VIN = VBIAS = 5 V |
| Logic | Compatible with 1.2/1.8/2.5/3.3-V control levels |
| Timing / Protection | Configurable rise time, thermal shutdown, optional QOD |
| Exact Package / Packing | WSON (DSG), 8 pins, 2 mm × 2 mm; 3000-piece large reel; marking 13XH |
| Manufacturer Status | Active / Production |
| Part Marking | 13XH |
Functional Highlights
Bias-assisted gate drive keeps RON low on sub-1-V rails
This is useful for high-current core/peripheral rails where a self-powered switch would lose gate overdrive as VIN falls.
6-A integration can replace a discrete PFET/load-control stage
Slew control and thermal shutdown are built around a very low-resistance switch in one small package.
Design Considerations
- Sequence VBIAS, VIN and ON according to datasheet conditions.
- Calculate I²R/package temperature at worst-case RON, not only the 16-mΩ typical value.
- Use exposed-pad copper/vias appropriate for multi-amp current and heat.
Product Status and Exact Order Code
Manufacturer status: Active / Production
Texas Instruments lists TPS22975DSGR as Active / Production; WSON (DSG), 8 pins; 3000-piece large tape and reel; −40°C to +105°C; marking 13XH.
