Key Selection Information
| Selection Parameter | Confirmed Information |
|---|---|
| Conversion | Stereo audio ADC |
| Sample Rates | 8 kHz to 96 kHz |
| SNR | 92 dBA stated feature |
| Analog Front End | Up to 40 dB programmable analog gain / AGC |
| Inputs | Six configurable analog inputs; single-ended or differential |
| DSP | Embedded instruction-programmable miniDSP and programmable filters |
| Digital Audio | I²S/LJ/RJ/DSP/TDM plus digital microphone support |
| Exact Package / Packing | VQFN (RGE), 24 pins; 3000-piece large tape and reel |
Product Overview
TLV320ADC3101IRGER combines a stereo audio ADC with programmable analog gain, digital-microphone support and an embedded miniDSP. It is aimed at portable voice/audio acquisition where input routing, AGC and filtering need to be changed in software without adding a separate DSP.
The miniDSP is the key selection differentiator versus simple audio ADCs such as PCM1808: it can implement IIR/FIR/EQ/noise-processing blocks but requires coefficient/program configuration and increases firmware validation scope.
The RGE order code uses a compact 4 mm VQFN with exposed pad and 3000-piece reel packaging. Thermal/ground-pad soldering and mixed-signal layout are therefore part of production readiness.
For related devices, see HKEQGOO’s ADCs/DACs – Special Purpose category.
Technical Specifications
| Parameter | Verified Information |
|---|---|
| Manufacturer | Texas Instruments |
| Exact MPN | TLV320ADC3101IRGER |
| Conversion | Stereo audio ADC |
| Sample Rates | 8 kHz to 96 kHz |
| SNR | 92 dBA stated feature |
| Analog Front End | Up to 40 dB programmable analog gain / AGC |
| Inputs | Six configurable analog inputs; single-ended or differential |
| DSP | Embedded instruction-programmable miniDSP and programmable filters |
| Digital Audio | I²S/LJ/RJ/DSP/TDM plus digital microphone support |
| Exact Package / Packing | VQFN (RGE), 24 pins; 3000-piece large tape and reel |
| Manufacturer Status | Active / Production |

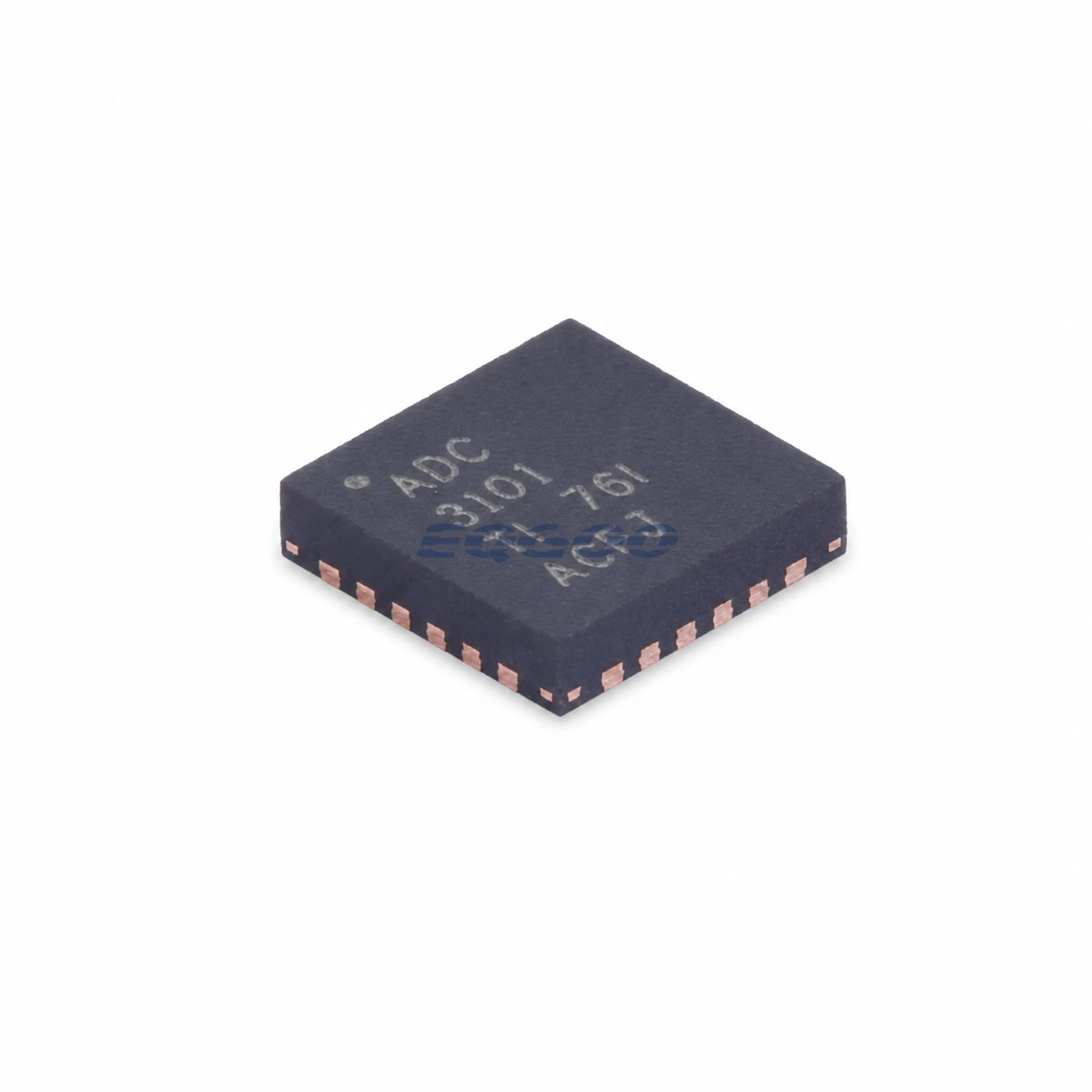

| Part Marking | ADC 3101 |
Functional Highlights
Programmable front end can replace external analog/digital processing
Gain, input routing and miniDSP filters can move functions such as voice EQ or noise conditioning into the codec path, reducing component count but tying behavior to register/DSP firmware.
Digital microphone support changes clock/routing needs
A design that uses digital mics avoids analog input noise/gain constraints but must instead manage mic clock/data timing and the internal routing configuration.
Design Considerations
- Freeze miniDSP coefficients/register image as version-controlled firmware; audio performance is not defined by the BOM alone.
- Keep analog inputs/references away from digital audio clocks and provide a low-impedance exposed-pad ground.
- Validate power-up/register sequencing for the chosen analog or digital microphone path.
Product Status and Exact Order Code
Manufacturer status: Active / Production
Texas Instruments lists TLV320ADC3101IRGER as Active / Production; VQFN (RGE), 24 pins; 3000-piece large tape and reel; Level-2-260C-1 YEAR; −40°C to +85°C; marking ADC 3101.
