Key Selection Information
| Selection Parameter | Confirmed Information |
|---|---|
| Resolution | 55 ps stated resolution |
| Precision | 35 ps standard deviation stated feature |
| Measurement Mode 1 | 12 ns to 500 ns |
| Measurement Mode 2 | 250 ns to 8 ms |
| Stops | Up to 5 STOP signals |
| Supply | 2 V to 3.6 V |
| Interface / Power | SPI; 0.5 µA at 2 SPS stated feature |
| Exact Package / Packing | TSSOP (PW), 14 pins; 2000-piece large tape and reel |
Product Overview
TDC7200PWR measures elapsed time between a START edge and up to five STOP edges, making it a digital timing front end for ultrasonic flow, LIDAR/SONAR and position systems rather than a voltage ADC. Two measurement modes cover short nanosecond intervals through millisecond-scale time of flight.
The 55 ps resolution headline must be distinguished from complete system distance accuracy. Comparator threshold variation, transducer/laser pulse shape, analog front-end delay, reference-clock stability and calibration can dominate the final ToF error even when the TDC quantization is much finer.
Multi-cycle averaging reduces host activity and power for slowly sampled metering applications, while SPI provides register/configuration access. The exact PWR order code is the 2000-piece TSSOP reel option.
For related devices, see HKEQGOO’s ADCs/DACs – Special Purpose category.
Technical Specifications
| Parameter | Verified Information |
|---|---|
| Manufacturer | Texas Instruments |
| Exact MPN | TDC7200PWR |
| Resolution | 55 ps stated resolution |
| Precision | 35 ps standard deviation stated feature |
| Measurement Mode 1 | 12 ns to 500 ns |
| Measurement Mode 2 | 250 ns to 8 ms |
| Stops | Up to 5 STOP signals |
| Supply | 2 V to 3.6 V |
| Interface / Power | SPI; 0.5 µA at 2 SPS stated feature |
| Exact Package / Packing | TSSOP (PW), 14 pins; 2000-piece large tape and reel |
| Manufacturer Status | Active / Production |

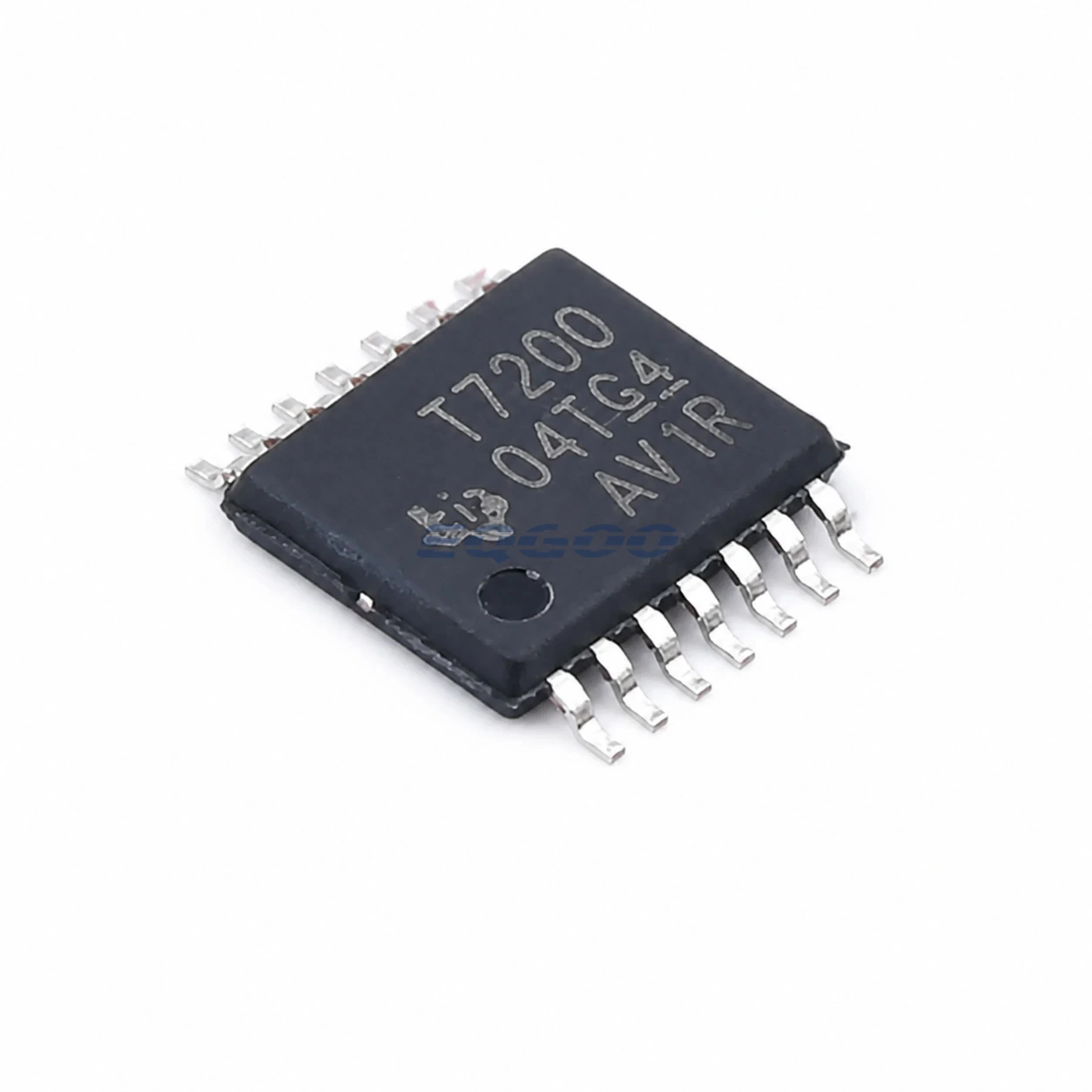

| Part Marking | T7200 |
Functional Highlights
Mode choice changes how the timing interval is measured
Mode 1 targets shorter intervals while Mode 2 handles longer time-of-flight windows. Firmware should choose the mode from expected minimum/maximum path delay rather than simply using the highest nominal resolution mode.
Multiple STOP inputs enable more than one echo/event per START
Up to five STOP events can support echo selection or repeated edge timing, but analog detection must prevent false/noise edges from consuming those events.
Design Considerations
- Budget analog-front-end and comparator timing uncertainty separately from the 55 ps converter resolution.
- Use a stable reference clock and calibrate system delay if absolute distance/time accuracy matters.
- Design START/STOP signal integrity to avoid ringing or threshold re-crossing that can create false timestamps.
Product Status and Exact Order Code
Manufacturer status: Active / Production
Texas Instruments lists TDC7200PWR as Active / Production; TSSOP (PW), 14 pins; 2000-piece large tape and reel; Level-1-260C-UNLIM; −40°C to +85°C; marking T7200.
