Key Selection Information
| Selection Parameter | Confirmed Information |
|---|---|
| GPIO | 16 configurable I/O pins |
| Supply | Low-voltage family operation to 5.5 V |
| Bus | I²C/SMBus up to 400 kHz |
| Addressing | 2 address pins; up to 4 devices |
| Control | Active-low RESET and open-drain INT |
| Registers | Input/output/configuration/polarity inversion |
| Startup | Internal power-on reset; no-glitch startup |
| Exact Package / Packing | TSSOP (PW), 24 pins; 2000-piece large tape and reel |
Product Overview
TCA9539PWR provides 16 general GPIOs plus a dedicated active-low RESET input. That reset pin is the main system-level differentiator from 16-bit expanders such as TCA9555/PCA9555 that rely on power-on reset and software state.
Two address pins allow four devices on one I²C segment. This is fewer than the eight address choices of TCA9555, so a design with many 16-bit expanders may prefer address flexibility over hardware reset.
The PWR exact order code is the TSSOP-24 large-reel version, retaining visible leads for manufacturing and debug.
For related devices, see HKEQGOO’s I/O Expanders category.
Technical Specifications
| Parameter | Verified Information |
|---|---|
| Manufacturer | Texas Instruments |
| Exact MPN | TCA9539PWR |
| GPIO | 16 configurable I/O pins |
| Supply | Low-voltage family operation to 5.5 V |
| Bus | I²C/SMBus up to 400 kHz |
| Addressing | 2 address pins; up to 4 devices |
| Control | Active-low RESET and open-drain INT |
| Registers | Input/output/configuration/polarity inversion |
| Startup | Internal power-on reset; no-glitch startup |
| Exact Package / Packing | TSSOP (PW), 24 pins; 2000-piece large tape and reel |
| Manufacturer Status | Active / Production |

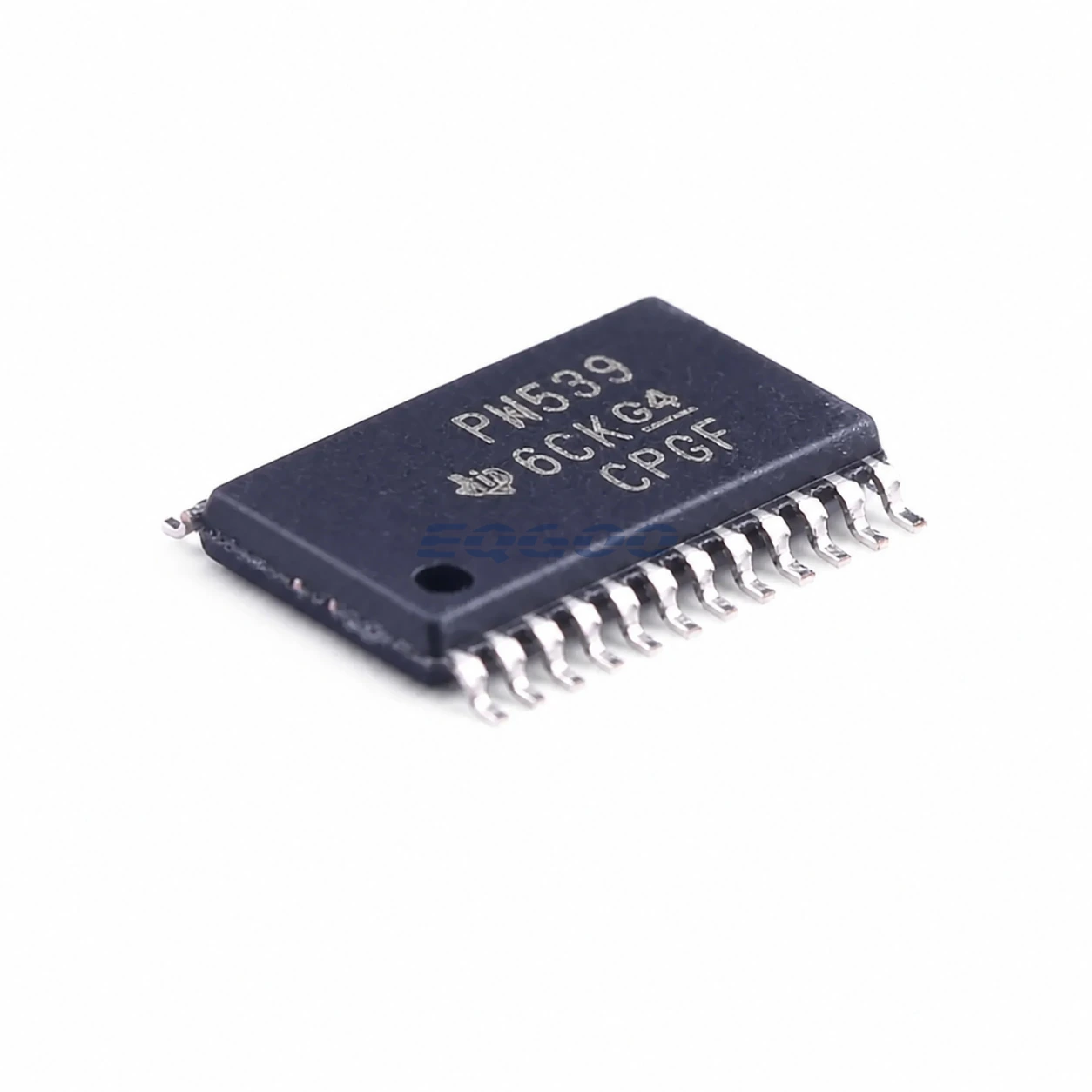

| Part Marking | PW539 |
Functional Highlights
Hardware RESET supports deterministic fault recovery
A supervisor or host GPIO can force all ports back to their default input state without cycling the shared supply, useful when external peripherals must be released after a software/bus fault.
Reset capability trades against address density
TCA9539 uses two address pins. If more than four devices are required on one bus, muxing or a different expander family may be simpler.
Design Considerations
- Connect RESET to a defined level and include it in boot/fault sequencing; do not leave recovery behavior accidental.
- Plan I²C address allocation before committing to multiple TCA9539 nodes.
- Initialize desired output values before enabling pins as outputs after reset.
Product Status and Exact Order Code
Manufacturer status: Active / Production
Texas Instruments lists TCA9539PWR as Active / Production; TSSOP (PW), 24 pins; 2000-piece large tape and reel; Level-1-260C-UNLIM; −40°C to +85°C; marking PW539.
