Key Selection Information
| Selection Parameter | Confirmed Information |
|---|---|
| Output | 3.0 V |
| Initial Accuracy | ±0.2% maximum for current REF30 standard grade |
| Temperature Drift | 75 ppm/°C maximum over −40°C to +125°C in current REF30 revision |
| Quiescent Current | 42 µA typical stated for REF30 |
| Output Current | Up to 25 mA family capability stated |
| Temperature Range | −40°C to +125°C |
| Package | SOT-23 (DBZ), 3 pins |
| Exact Packing | 3000-piece large tape and reel |
Product Overview

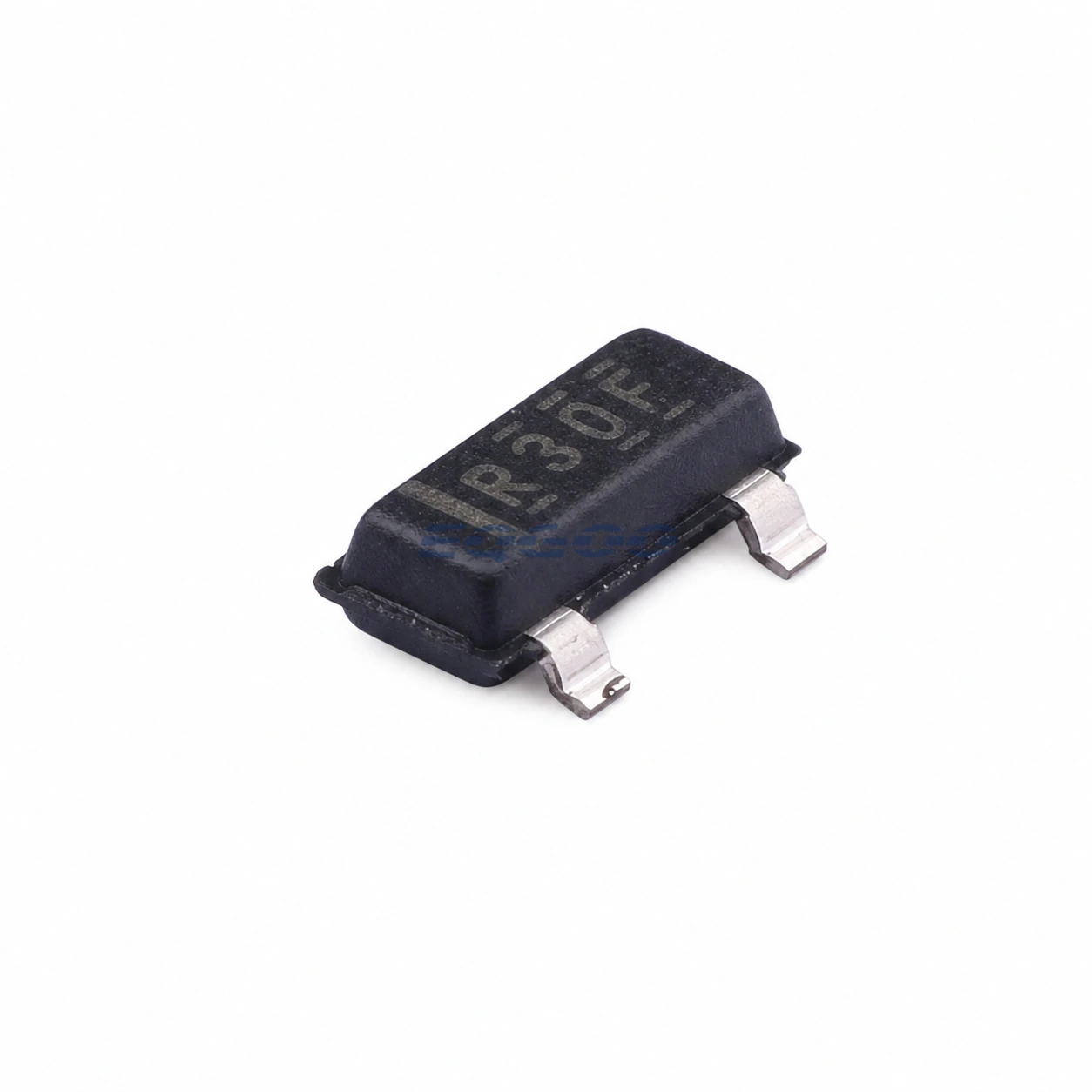

REF3030AIDBZR is the 3.0 V member of TI’s REF30 low-power reference family. It targets portable and loop-powered circuits where quiescent current and package size matter more than the ultra-low drift of larger precision references.
TI now groups this order code under the REF30 family; the older REF3030-specific datasheet URL has been retired. HKEQGOO therefore uses the live REF30 datasheet and product family so the engineering link does not resolve to a 404 page.
The AIDBZR order code is the standard REF30 grade in a 3-pin SOT-23, supplied on a 3000-piece reel. It should not be confused with the newer REF30E enhanced grade, which has tighter drift/accuracy specifications.
For related devices, see HKEQGOO’s Voltage References category.
Technical Specifications
| Parameter | Verified Information |
|---|---|
| Manufacturer | Texas Instruments |
| Exact MPN | REF3030AIDBZR |
| Output | 3.0 V |
| Initial Accuracy | ±0.2% maximum for current REF30 standard grade |
| Temperature Drift | 75 ppm/°C maximum over −40°C to +125°C in current REF30 revision |
| Quiescent Current | 42 µA typical stated for REF30 |
| Output Current | Up to 25 mA family capability stated |
| Temperature Range | −40°C to +125°C |
| Package | SOT-23 (DBZ), 3 pins |
| Exact Packing | 3000-piece large tape and reel |
| Manufacturer Status | Active / Production |
| Part Marking | See TI REF30 package addendum for current top-side marking |
Functional Highlights
Low operating current suits always-on reference rails
A tens-of-microamps reference can remain powered in battery or 4–20 mA transmitter electronics without consuming a large share of the system budget.
Standard and enhanced REF30 grades are not interchangeable on precision claims
REF30E improves drift and initial accuracy; using those headline numbers for REF3030AIDBZR would overstate this exact standard-grade order code.
Design Considerations
- Use the standard-grade REF30 accuracy/drift values for this exact AIDBZR part.
- Keep the reference output isolated from pulsed digital or converter loads that could modulate the output.
- Treat the updated REF30 family URL as authoritative for future revision checks.
Product Status and Exact Order Code
Manufacturer status: Active / Production
Texas Instruments lists REF3030AIDBZR as Active orderable REF3030AIDBZR; SOT-23 (DBZ), 3 pins; 3000-piece large tape and reel; −40°C to +125°C.
