Key Selection Information
| Selection Parameter | Confirmed Information |
|---|---|
| GPIO | 8 configurable I/O pins |
| Voltage Translation | 1.65 V to 5.5 V domains; I²C and P-port rails can differ |
| Bus | I²C/SMBus up to 400 kHz |
| Addressing | 1 hardware address pin; 2 devices per bus |
| Control | Active-low RESET and active-low INT |
| Startup | All channels inputs; no-glitch power-up |
| Standby | 1 µA stated standby current |

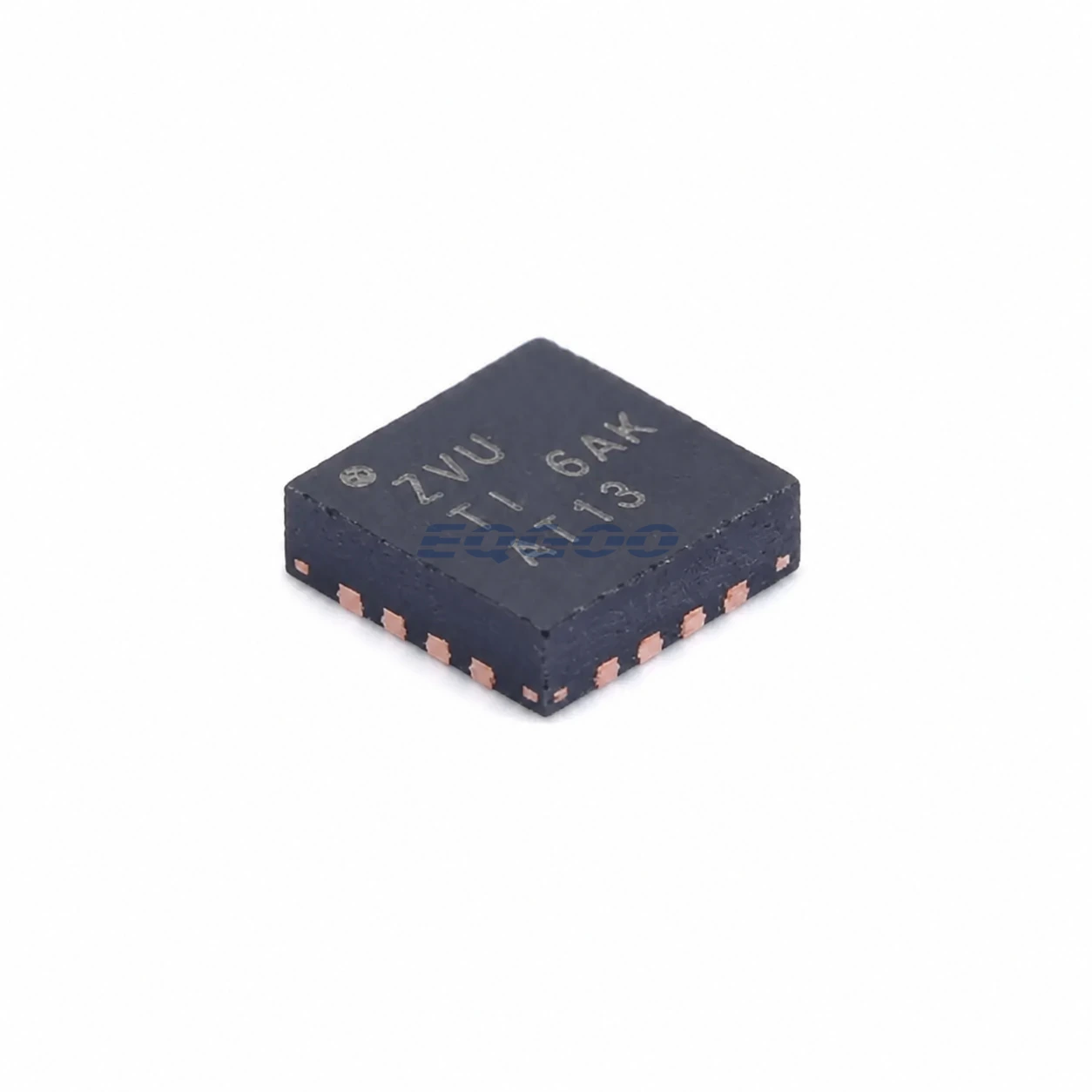

| Exact Package / Packing | VQFN (RGT), 16 pins, 3 mm × 3 mm; 3000-piece large tape and reel |
Product Overview
TCA6408ARGTR is an 8-bit GPIO expander built specifically for systems where the processor I²C rail and peripheral I/O rail may use different voltages. It can translate between common 1.8 V, 2.5 V, 3.3 V and 5 V domains while adding eight remotely controlled pins.
RESET is a meaningful system feature: firmware or supervisor logic can return all ports to their input default without cycling the power rail. This helps isolate misconfigured peripherals during boot/recovery.
The exact RGTR code is the compact 3 mm VQFN large-reel option. Compared with a leaded TSSOP variant, it saves area but makes exposed-pad/leadless assembly and inspection part of manufacturing qualification.
For related devices, see HKEQGOO’s I/O Expanders category.
Technical Specifications
| Parameter | Verified Information |
|---|---|
| Manufacturer | Texas Instruments |
| Exact MPN | TCA6408ARGTR |
| GPIO | 8 configurable I/O pins |
| Voltage Translation | 1.65 V to 5.5 V domains; I²C and P-port rails can differ |
| Bus | I²C/SMBus up to 400 kHz |
| Addressing | 1 hardware address pin; 2 devices per bus |
| Control | Active-low RESET and active-low INT |
| Startup | All channels inputs; no-glitch power-up |
| Standby | 1 µA stated standby current |
| Exact Package / Packing | VQFN (RGT), 16 pins, 3 mm × 3 mm; 3000-piece large tape and reel |
| Manufacturer Status | Active / Production |
| Part Marking | ZVU |
Functional Highlights
Translation removes the need to align GPIO and I²C/peripheral rails
The device is useful when the host operates at a lower core/I²C voltage while external control/status pins live on a higher domain. Both supply rails and sequencing must stay within datasheet conditions.
Hardware RESET gives deterministic recovery
A stuck software state can be cleared externally, returning pins to inputs. External hardware still needs safe pulls so the reset state is electrically defined.
Design Considerations
- Verify both rail voltages and power sequencing rather than treating the device as a single-supply expander.
- Provide safe external bias for pins whose default-input state must not float during reset.
- Follow RGT exposed-pad/land-pattern guidance for production assembly.
Product Status and Exact Order Code
Manufacturer status: Active / Production
Texas Instruments lists TCA6408ARGTR as Active / Production; VQFN (RGT), 16 pins; 3000-piece large tape and reel; Level-2-260C-1 YEAR; −40°C to +85°C; marking ZVU.
