Key Selection Information

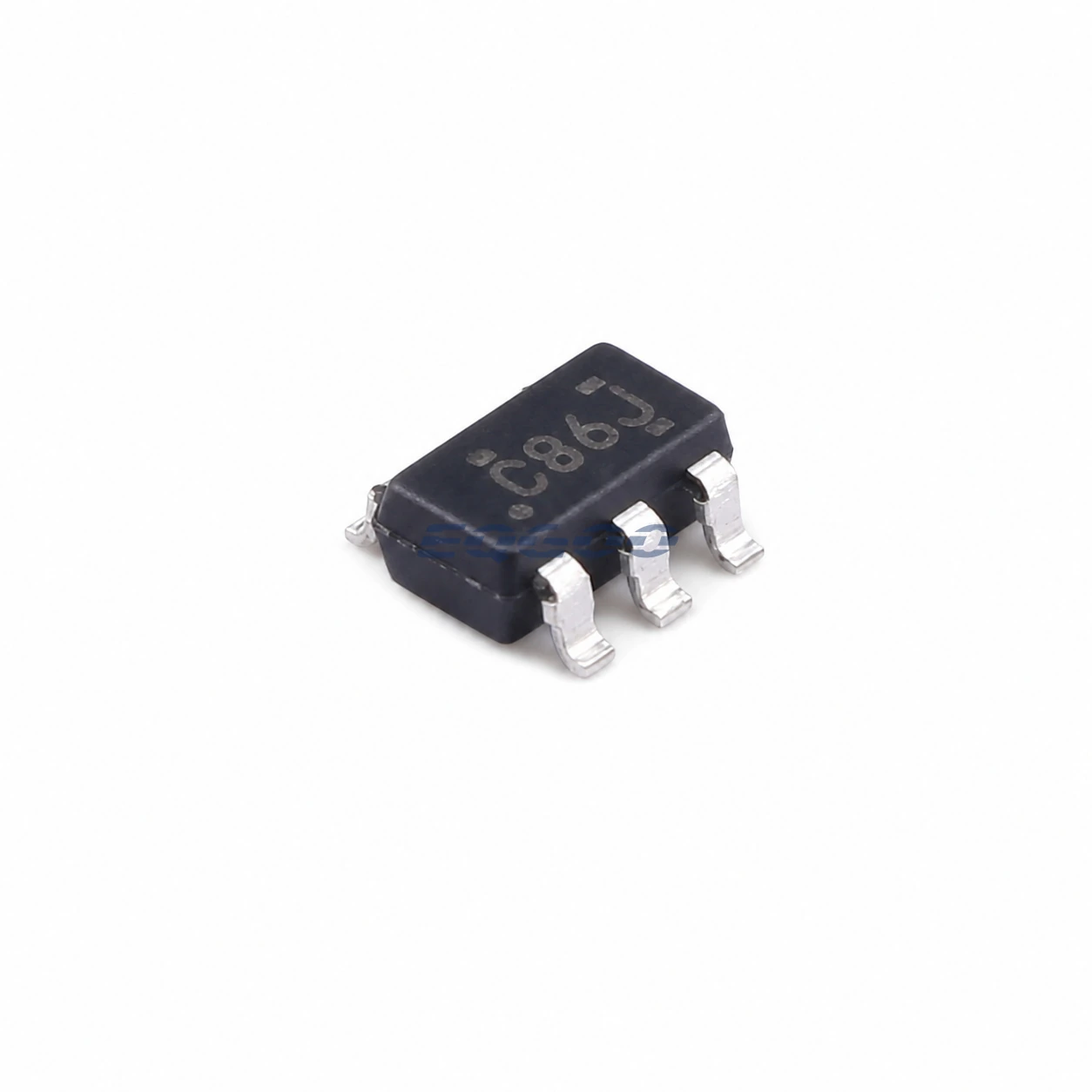

| Selection Parameter | Confirmed Information |
|---|---|
| Logic Function | Single 2-input XOR |
| Supply | 1.65 V to 5.5 V |
| Delay | 4 ns maximum stated at 3.3 V / 15 pF |
| Drive | ±24 mA at 3.3 V; higher family drive at 4.5 V |
| Inputs | 5.5-V overvoltage tolerant; supports down translation to VCC |
| Power Sequencing | Ioff partial-power-down/back-drive protection |
| Use | Parity, edge/polarity compare, conditional inversion |
| Exact Package / Packing | SOT-23 (DBV), 5 pins; 3000-piece large reel; −40°C to +125°C |
Product Overview
SN74LVC1G86DBVR implements XOR: the output is high only when the two inputs differ. That makes it useful for parity, phase/polarity comparison and conditional inversion rather than simple enable gating.
The LVC family operates down to 1.65 V and accepts inputs up to 5.5 V, so it can also perform certain down-translation tasks when the output must swing to a lower VCC domain.
Ioff support is valuable in multi-rail systems because driven inputs do not intentionally back-power the output rail when VCC is off. This is a meaningful electrical distinction from basic AHC single gates.
For related devices, see HKEQGOO’s Gates and Inverters category.
Technical Specifications
| Parameter | Verified Information |
|---|---|
| Manufacturer | Texas Instruments |
| Exact MPN | SN74LVC1G86DBVR |
| Logic Function | Single 2-input XOR |
| Supply | 1.65 V to 5.5 V |
| Delay | 4 ns maximum stated at 3.3 V / 15 pF |
| Drive | ±24 mA at 3.3 V; higher family drive at 4.5 V |
| Inputs | 5.5-V overvoltage tolerant; supports down translation to VCC |
| Power Sequencing | Ioff partial-power-down/back-drive protection |
| Use | Parity, edge/polarity compare, conditional inversion |
| Exact Package / Packing | SOT-23 (DBV), 5 pins; 3000-piece large reel; −40°C to +125°C |
| Manufacturer Status | Active / Production |
| Part Marking | C86-series marking variants per TI addendum |
Functional Highlights
XOR performs “signals differ” detection directly
It can compare digital states or invert one signal conditionally using the second input as a control.
Overvoltage-tolerant inputs enable simple down translation
A 5-V-class input can be accepted while VCC sets a lower output logic level, subject to exact datasheet limits.
Design Considerations
- Use XOR truth behavior deliberately; it is not interchangeable with OR.
- Check input transition/ringing in edge-detection applications because a fast XOR can create narrow pulses.
- Respect Ioff and maximum input conditions during every power sequence.
Product Status and Exact Order Code
Texas Instruments lists SN74LVC1G86DBVR as Active / Production; SOT-23 (DBV), 5 pins; 3000-piece large tape and reel; −40°C to +125°C.
