Key Selection Information
| Selection Parameter | Confirmed Information |
|---|---|
| Humidity Accuracy | ±2% RH typical stated |
| Temperature Accuracy | ±0.2°C typical stated |
| Resolution | Up to 14-bit measurement resolution |
| Supply | 2.7 V to 5.5 V |
| Interface | I²C |
| Sleep Current | 100 nA stated |
| Calibration | Factory-calibrated humidity and temperature sensing |
| Exact Package / Packing | WSON (DMB), 6 pins, 3 mm × 3 mm; 3000-piece large reel; marking 1R |

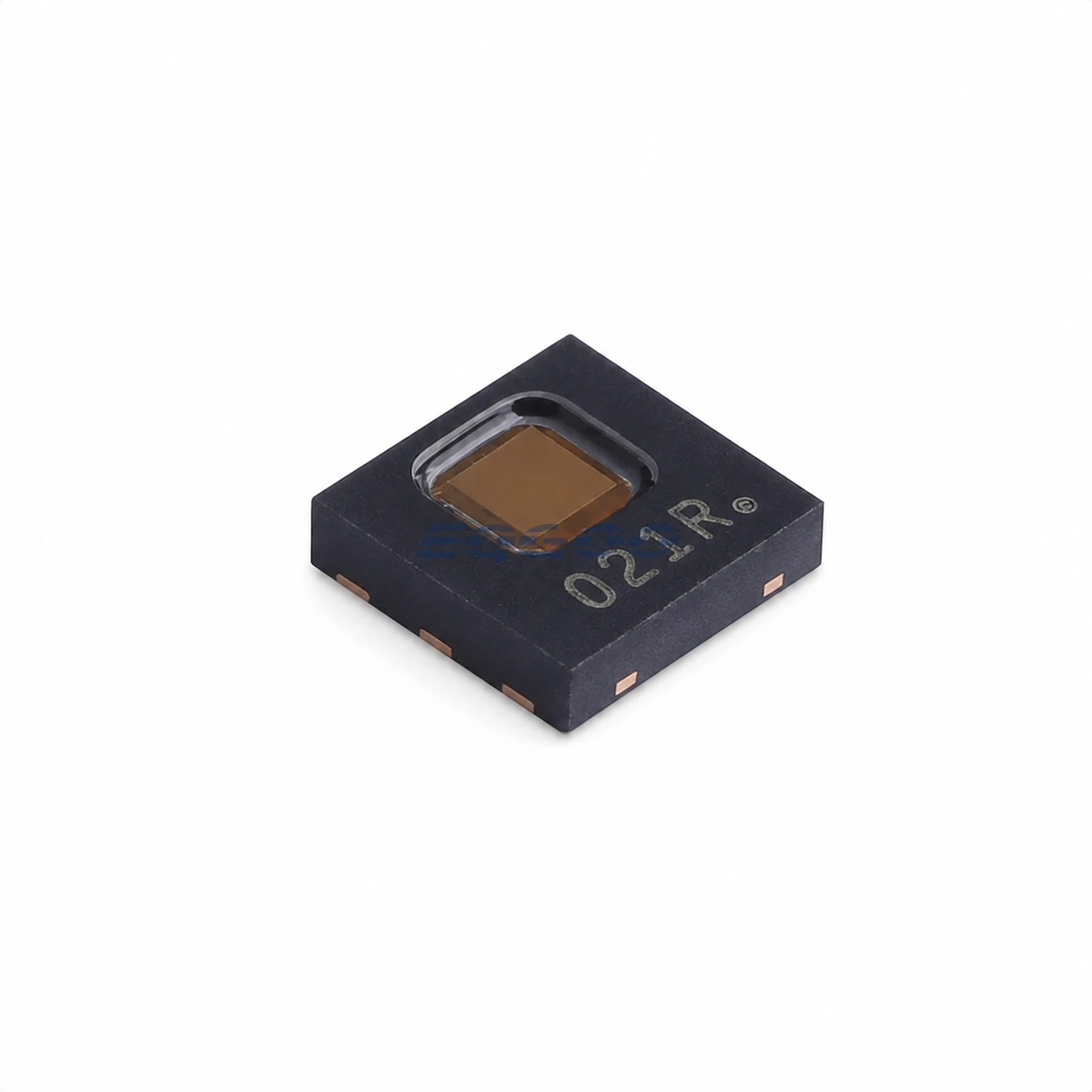

Product Overview
HDC1080DMBR integrates calibrated humidity and temperature sensing into a 3 mm WSON for HVAC, room monitoring and embedded environmental measurement. Its broad 2.7–5.5 V supply range fits both 3.3 V and 5 V legacy control systems.
The sensor is optimized for low average power: sleep current is in the 100-nA class and one-sample-per-second operation can remain in the microamp or sub-microamp range depending on selected resolution and measurement combination.
Humidity accuracy depends on the physical environment around the sensing opening. Flux, solvents, conformal coating, dust and sustained condensation can matter more than digital interface accuracy if the package exposure is not handled correctly.
For related devices, see HKEQGOO’s Humidity, Moisture Sensors category.
Technical Specifications
| Parameter | Verified Information |
|---|---|
| Manufacturer | Texas Instruments |
| Exact MPN | HDC1080DMBR |
| Humidity Accuracy | ±2% RH typical stated |
| Temperature Accuracy | ±0.2°C typical stated |
| Resolution | Up to 14-bit measurement resolution |
| Supply | 2.7 V to 5.5 V |
| Interface | I²C |
| Sleep Current | 100 nA stated |
| Calibration | Factory-calibrated humidity and temperature sensing |
| Exact Package / Packing | WSON (DMB), 6 pins, 3 mm × 3 mm; 3000-piece large reel; marking 1R |
| Manufacturer Status | Active / Production |
| Part Marking | 1R |
Functional Highlights
Factory calibration reduces board-level calibration work
The host reads digital RH and temperature values without needing an external ADC or individual production trim for the sensor element.
Wide supply range simplifies retrofit designs
HDC1080 can fit systems where a newer 1.8-V-class sensor rail is not available, while still supporting low-power periodic measurements.
Design Considerations
- Keep the sensing area exposed to representative air and away from heat-generating components.
- Avoid cleaning/coating processes that contaminate or seal the humidity opening.
- Allow enough thermal settling time after MCU/radio activity before interpreting temperature as ambient air temperature.
Product Status and Exact Order Code
Manufacturer status: Active / Production
Texas Instruments lists HDC1080DMBR as Active / Production; WSON (DMB), 6 pins; 3000-piece large tape and reel; −40°C to +125°C; marking 1R.
Related Engineering Resources
Quality & Verification Support
Third-party inspection or testing can be arranged according to customer requirements. Testing fees are borne by the buyer. Additional verification requirements can be discussed before shipment. After an order is placed, physical product, label, packaging, and Date Code photos may be provided where appropriate.
Request a Quote
To request a quotation, provide the manufacturer part number, required quantity, destination, target Date Code if applicable, and any testing or inspection requirements.
