Key Selection Information
| Selection Parameter | Confirmed Information |
|---|---|
| Channels / Resolution | 2 channels, 16-bit |
| Linearity | 1 LSB maximum INL and DNL stated for 16-bit device |
| Reference | Integrated 2.5 V reference, 5 ppm/°C maximum drift stated |
| Output Ranges | Buffered 1.25 V, 2.5 V or 5 V |
| Interface | Pin-selectable SPI up to 50 MHz or I²C |
| Supply | 2.7 V to 5.5 V |
| Reset | Selectable zero-scale or midscale power-on reset |
| Exact Package / Packing | WSON (DRX), 10 pins; 3000-piece large reel; marking D852 |
Product Overview

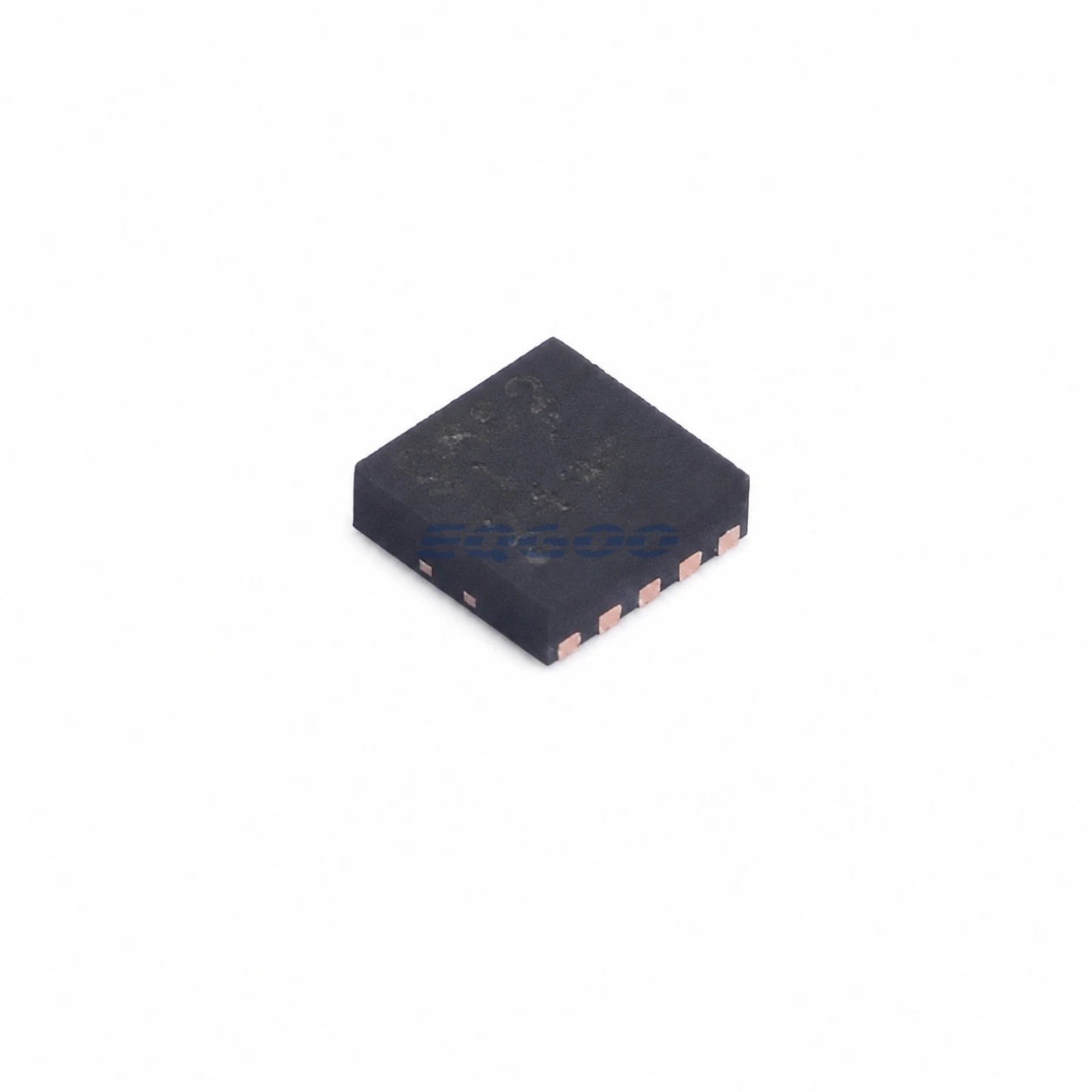

DAC80502DRXR provides two high-resolution voltage outputs from a tiny 2.5 mm-class WSON. Both channels share an integrated low-drift reference and can be configured for 1.25 V, 2.5 V or 5 V buffered ranges.
Sixteen-bit linearity makes reference noise, grounding, thermal gradients and output loading materially important. The component can provide 65,536 codes, but the system only benefits if the reference and PCB preserve that precision.
The selectable SPI/I²C interface eases platform reuse while the DRXR suffix identifies the 3000-piece leadless production reel.
For related devices, see HKEQGOO’s DACs category.
Technical Specifications
| Parameter | Verified Information |
|---|---|
| Manufacturer | Texas Instruments |
| Exact MPN | DAC80502DRXR |
| Channels / Resolution | 2 channels, 16-bit |
| Linearity | 1 LSB maximum INL and DNL stated for 16-bit device |
| Reference | Integrated 2.5 V reference, 5 ppm/°C maximum drift stated |
| Output Ranges | Buffered 1.25 V, 2.5 V or 5 V |
| Interface | Pin-selectable SPI up to 50 MHz or I²C |
| Supply | 2.7 V to 5.5 V |
| Reset | Selectable zero-scale or midscale power-on reset |
| Exact Package / Packing | WSON (DRX), 10 pins; 3000-piece large reel; marking D852 |
| Manufacturer Status | Active / Production |
| Part Marking | D852 |
Functional Highlights
Dual 16-bit outputs support matched precision set points
Two bias, calibration or source-control nodes can share one reference and one compact package.
Internal reference reduces channel-to-channel gain uncertainty from separate references
Both outputs derive their scale from the same 2.5 V reference architecture, useful when relative tracking matters.
Design Considerations
- Use careful ground/reference decoupling appropriate to 16-bit resolution.
- Manage WSON exposed-pad soldering and thermal gradients in production.
- Choose output range to maximize code utilization without clipping required headroom.
Product Status and Exact Order Code
Manufacturer status: Active / Production
Texas Instruments lists DAC80502DRXR as Active / Production; WSON (DRX), 10 pins; 3000-piece large tape and reel; −40°C to +125°C; marking D852.
