Key Selection Information
| Selection Parameter | Confirmed Information |
|---|---|
| Channels / Resolution | 1 channel, 12-bit |
| Interface | I²C up to 3.4 Mbps; address support for two devices |
| Output | Buffered rail-to-rail; 0 V to VDD full scale |
| Settling | 10 µs to ±0.003% full scale stated |
| Supply | 2.7 V to 5.5 V |
| Current | 140 µA at 5 V stated |
| Power State | Reset to zero; power-down reduces current to tens of nA |
| Exact Package / Packing | SOT-23-6 (DBV); 3000-piece reel; marking D771 |
Product Overview
DAC7571IDBVR is a compact 12-bit I²C DAC for applications that need more trim resolution than DAC5571 without increasing package size. The buffered output swings across the supply-referenced range from ground toward VDD.
The 10-µs settling specification sets the analog response limit even though the I²C bus can run at multi-megabit speed. Closed-loop systems should therefore budget serial transfer and analog settling separately.
Like DAC5571, VDD defines the output full scale. The exact DBVR code is the 3000-piece SOT-23 reel.
For related devices, see HKEQGOO’s DACs category.
Technical Specifications
| Parameter | Verified Information |
|---|---|
| Manufacturer | Texas Instruments |
| Exact MPN | DAC7571IDBVR |
| Channels / Resolution | 1 channel, 12-bit |
| Interface | I²C up to 3.4 Mbps; address support for two devices |
| Output | Buffered rail-to-rail; 0 V to VDD full scale |
| Settling | 10 µs to ±0.003% full scale stated |
| Supply | 2.7 V to 5.5 V |
| Current | 140 µA at 5 V stated |
| Power State | Reset to zero; power-down reduces current to tens of nA |

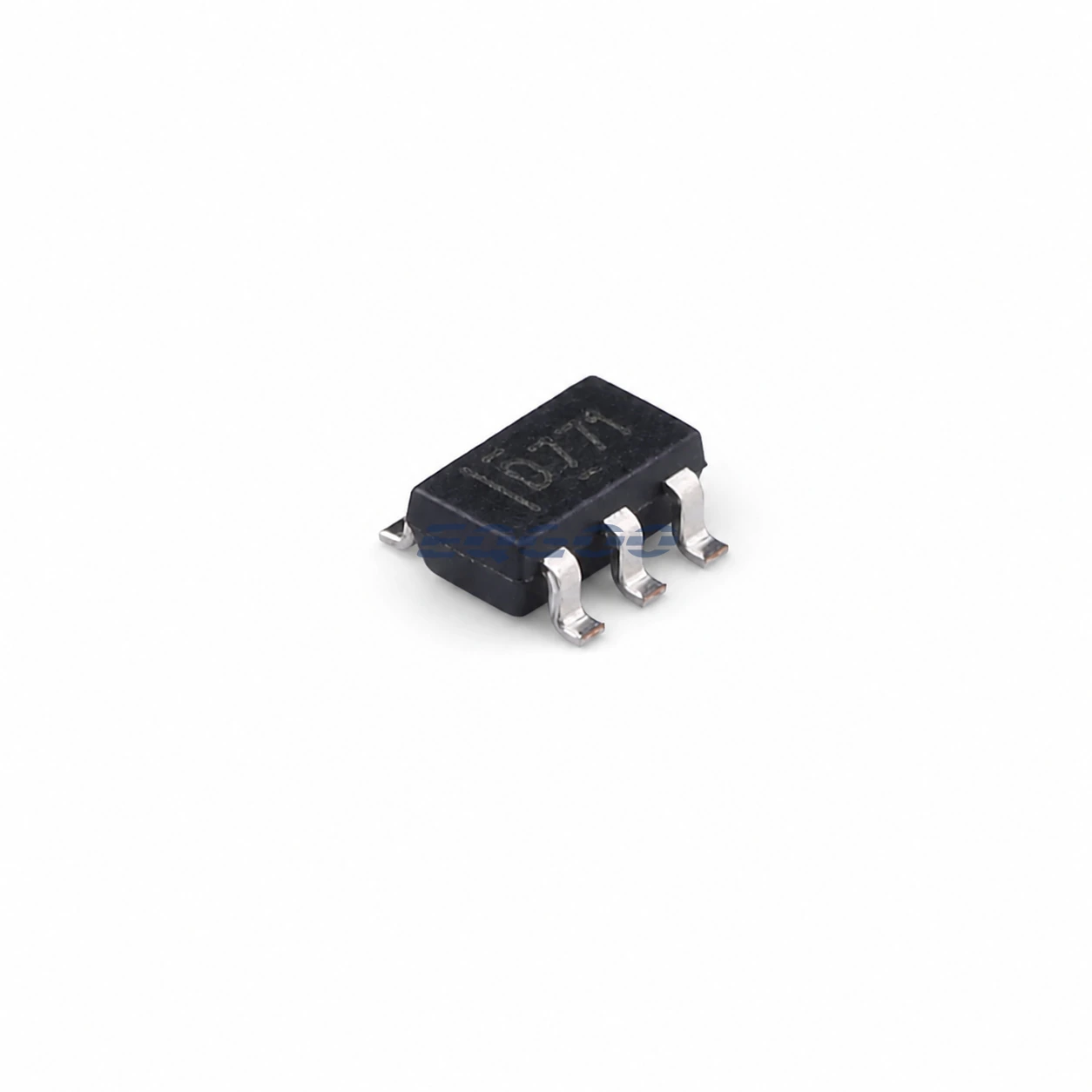

| Exact Package / Packing | SOT-23-6 (DBV); 3000-piece reel; marking D771 |
| Manufacturer Status | Active / Production |
| Part Marking | D771 |
Functional Highlights
Twelve-bit code depth improves fine calibration in six pins
4096 steps make the part suitable for sensor offset, threshold and bias adjustment where 8-bit resolution is too coarse.
Power-down supports duty-cycled portable systems
The DAC can drop to very low current while preserving a simple I²C architecture for wake/update cycles.
Design Considerations
- Use a low-noise VDD rail when output accuracy is important.
- Do not infer analog update speed from I²C clock rate; include the 10-µs settling behavior.
- Verify the external load does not violate rail-to-rail buffer drive limits.
Product Status and Exact Order Code
Manufacturer status: Active / Production
Texas Instruments lists DAC7571IDBVR as Active orderable DAC7571IDBVR; SOT23-6 DBV; 3000-piece tape and reel; marking D771.
