Key Selection Information
| Selection Parameter | Confirmed Information |
|---|---|
| Package | LGA-8 |
| Supply voltage | 1.71V~3.6V |
| Interface | I2C;SPI |
| Operating Temperature | -40℃~+85℃ |
| Absolute Accuracy | 0.6hpa |
| Pressure range | 30Kpa~1.1bar |
| Standby Current | 150nA |
Product Overview

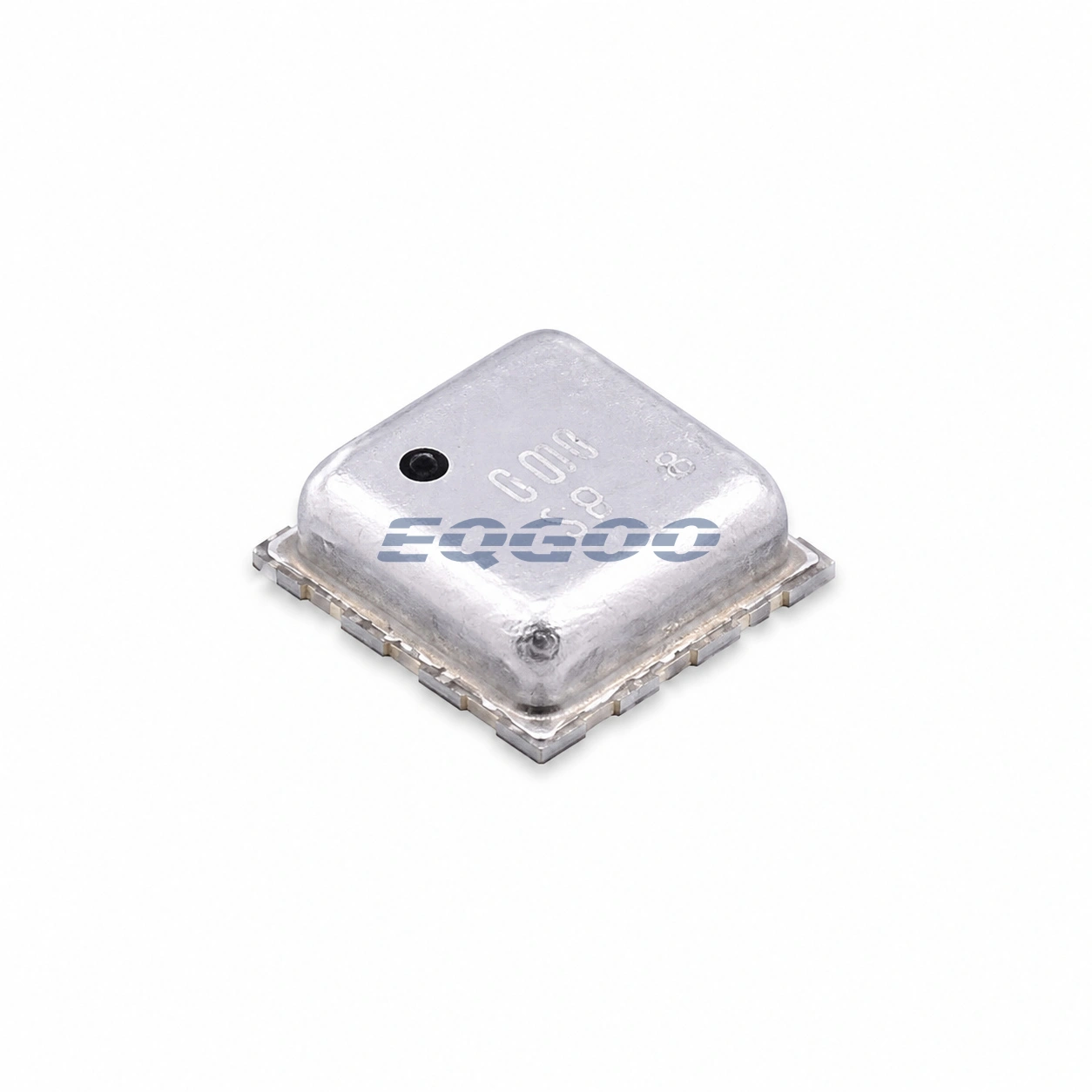

BME680 is a Bosch specialized sensor identified by the exact orderable code BME680. Its confirmed technical identity includes Supply voltage 1.71V~3.6V, Interface I2C;SPI, Operating Temperature -40℃~+85℃, Absolute Accuracy 0.6hpa.
The exact device is described as: 30Kpa~1.1bar LGA-8 Specialized Sensors. Selection should be based on the exact package and the operating conditions required by the design, rather than on a nearby family member or a generic part number.
Technical Specifications
| Parameter | Value |
|---|---|
| Package | LGA-8 |
| Supply voltage | 1.71V~3.6V |
| Interface | I2C;SPI |
| Operating Temperature | -40℃~+85℃ |
| Absolute Accuracy | 0.6hpa |
| Pressure range | 30Kpa~1.1bar |
| Standby Current | 150nA |
| Relative Accuracy | 0.12hpa |
| Features | Standby mode;Integrated ADC and digital interface;On-chip temperature output |
| Temperature Coefficient of Offset(TCO) | 1.3pa/K |
Selection Notes
- Package: LGA-8
- Supply voltage: 1.71V~3.6V
- Interface: I2C;SPI
- Operating Temperature: -40℃~+85℃
- Absolute Accuracy: 0.6hpa
Application Fit
This exact part is appropriate for designs that require a specialized sensor with the confirmed package and electrical/function parameters above. Final fit depends on the surrounding circuit, interface, thermal and mechanical requirements of the target design.
Design Considerations
Confirm the available supply rail stays inside the stated operating range, including startup and transient conditions.
Verify interface voltage levels, bus topology and timing/data-rate requirements against the rest of the system.
Use the exact LGA-8 footprint/package definition when checking PCB land pattern, assembly clearance and sourcing equivalence.
Related Engineering Resources
- Datasheet — verified HKEQGOO-hosted technical document for this exact product identity.
Quality & Verification Support
Third-party inspection or testing can be arranged according to customer requirements. Testing fees are borne by the buyer. Additional verification requirements can be discussed before shipment. After an order is placed, physical product, label, packaging, and Date Code photos may be provided where appropriate.
Request a Quote
To request a quotation, provide the manufacturer part number, required quantity, destination, target Date Code if applicable, and any testing or inspection requirements.
